Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

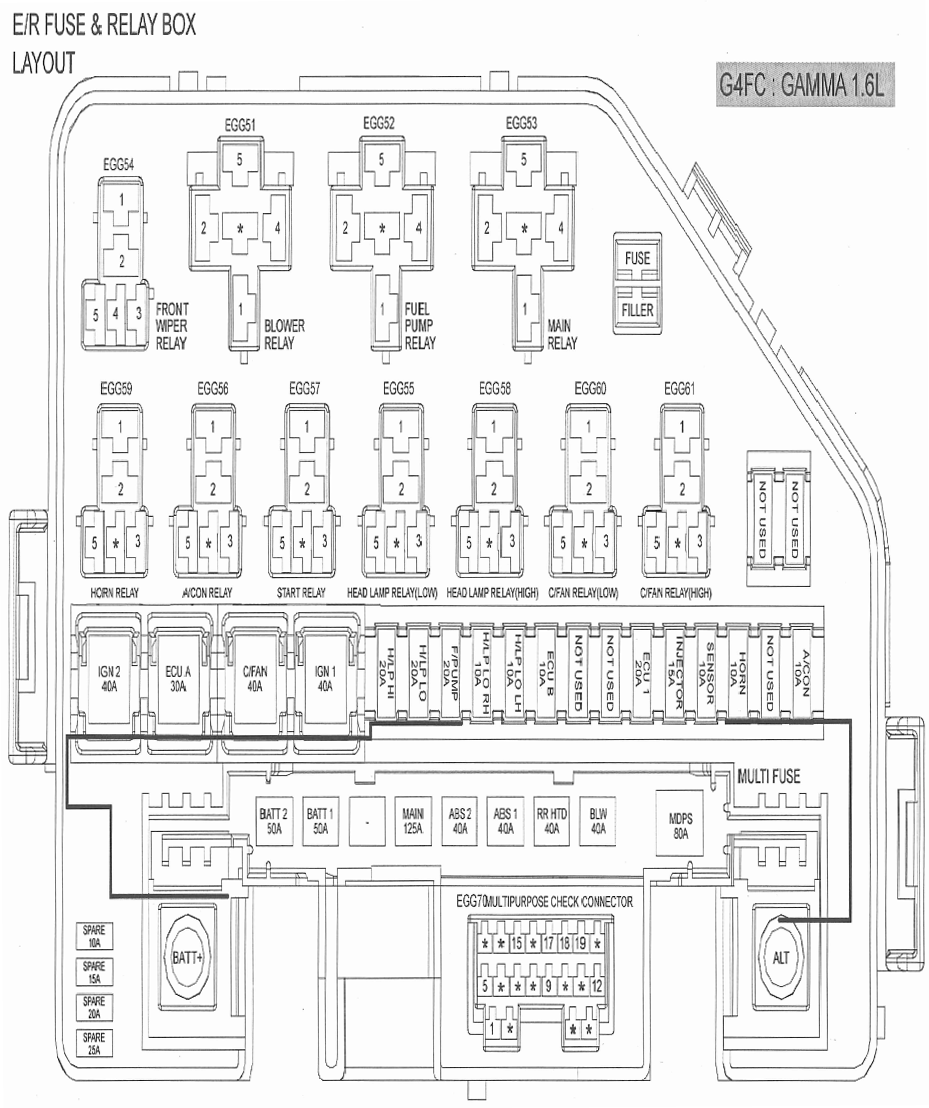

| E/R Fuse & Relay Box (1.6L) |
Left side of engine compartment. See Figure. |

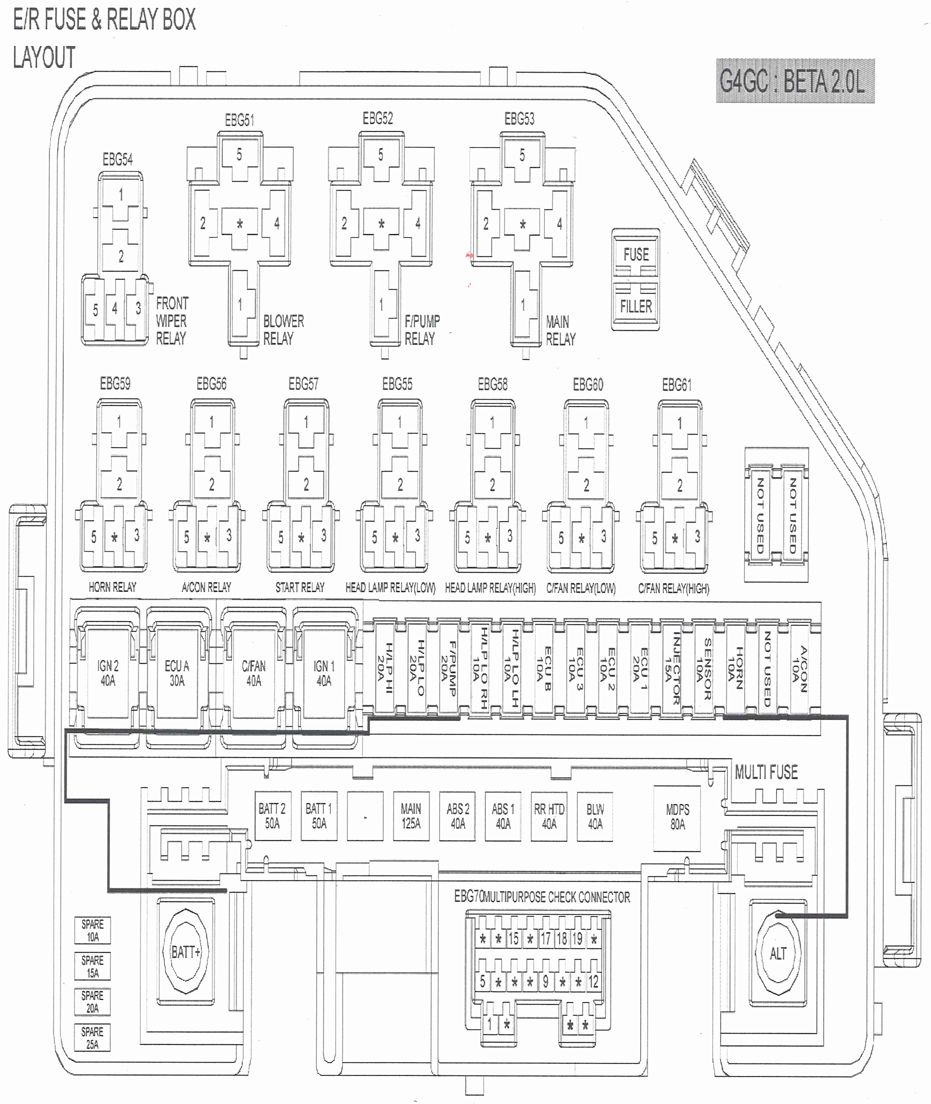

| E/R Fuse & Relay Box (2.0L) |
Left side of engine compartment. See Figure. |

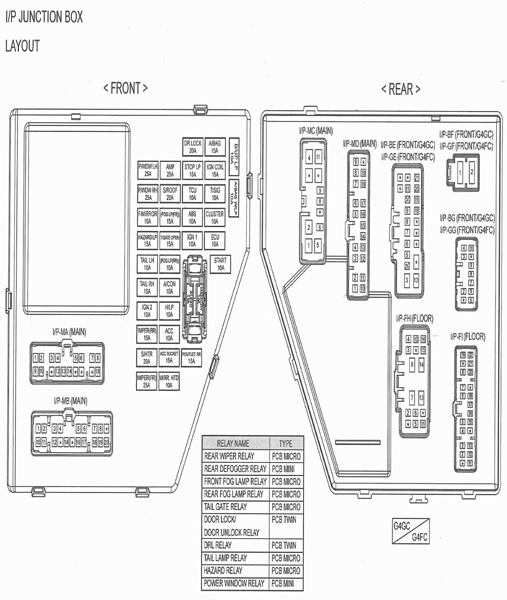

| I/P Junction Box |
Left side of dash. See Figure. |
