Engine Control System - 1.6L
>>
Components and Component Locations
>>
Components Location
Components Location

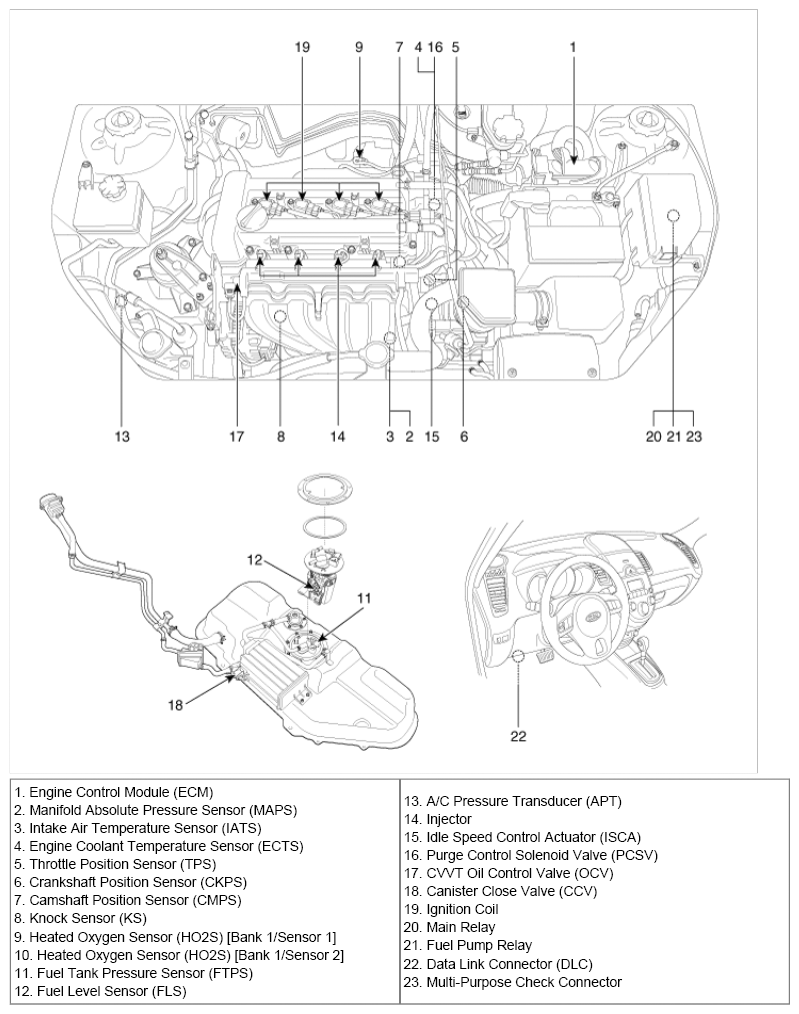

Fig 1: Locating Engine Control System Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

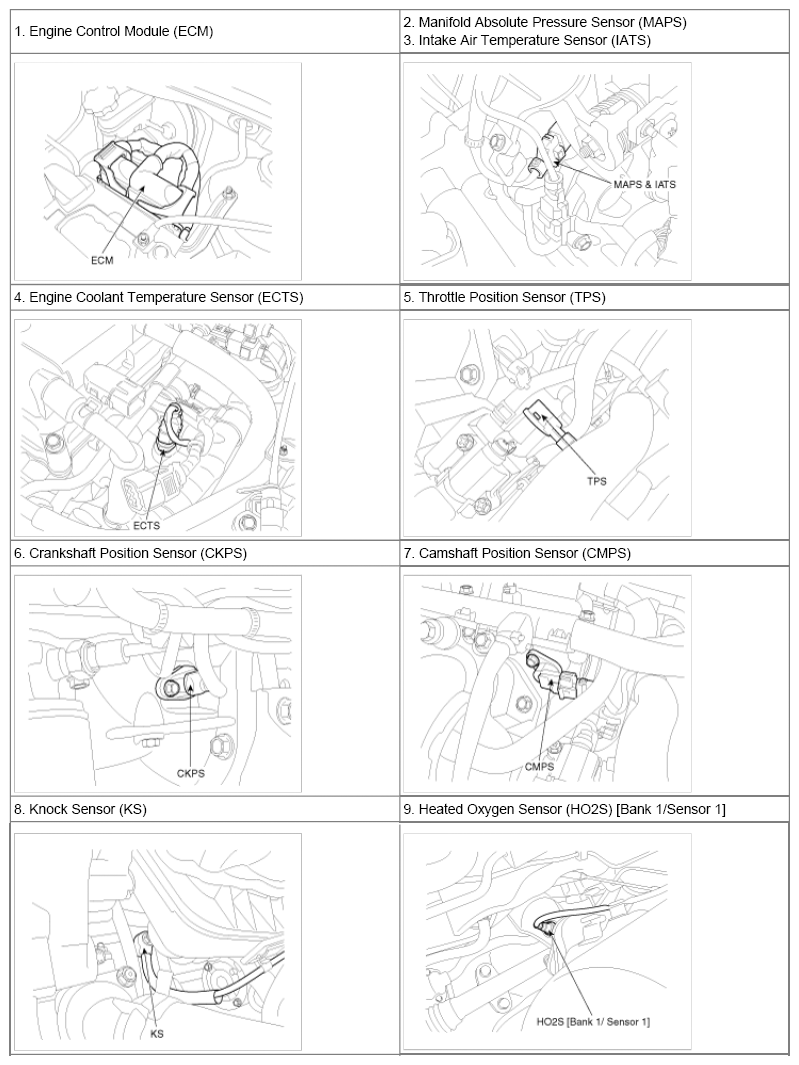

Fig 2: Locating Engine Control System Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

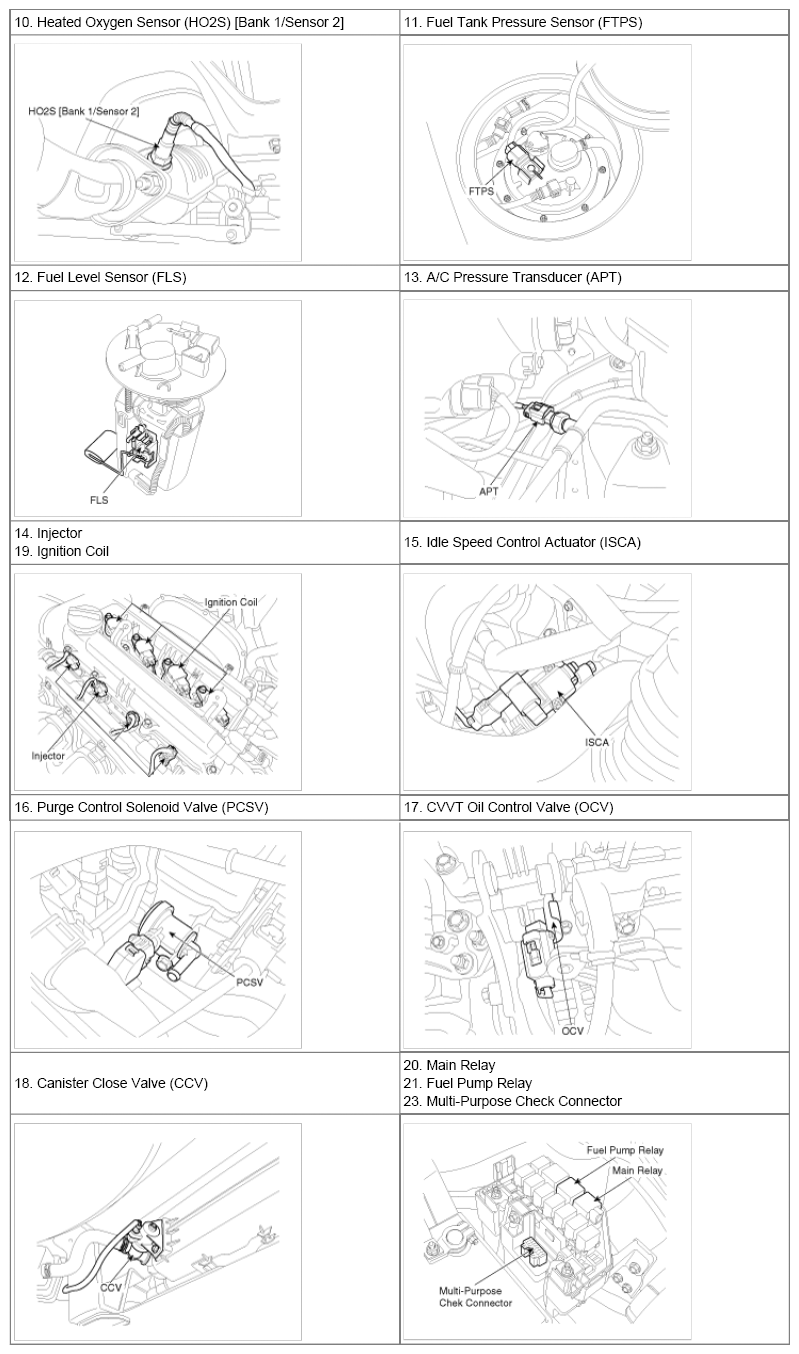

Fig 3: Locating Engine Control System Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
