Front Power Window Motor

  1. Remove the front door trim panel. (Refer to FRONT DOOR .
  2. Disconnect the connector from the motor.
    Fig 1: Identifying Motor Connector Terminal
    G06832225Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

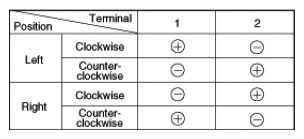

    Fig 2: Terminal Continuity Chart
    G06832226Courtesy of KIA MOTORS AMERICA, INC.
