Home >> Kia >> 2011 >> Rio Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System >> Timing Belt >> Component

Timing Belt: Component

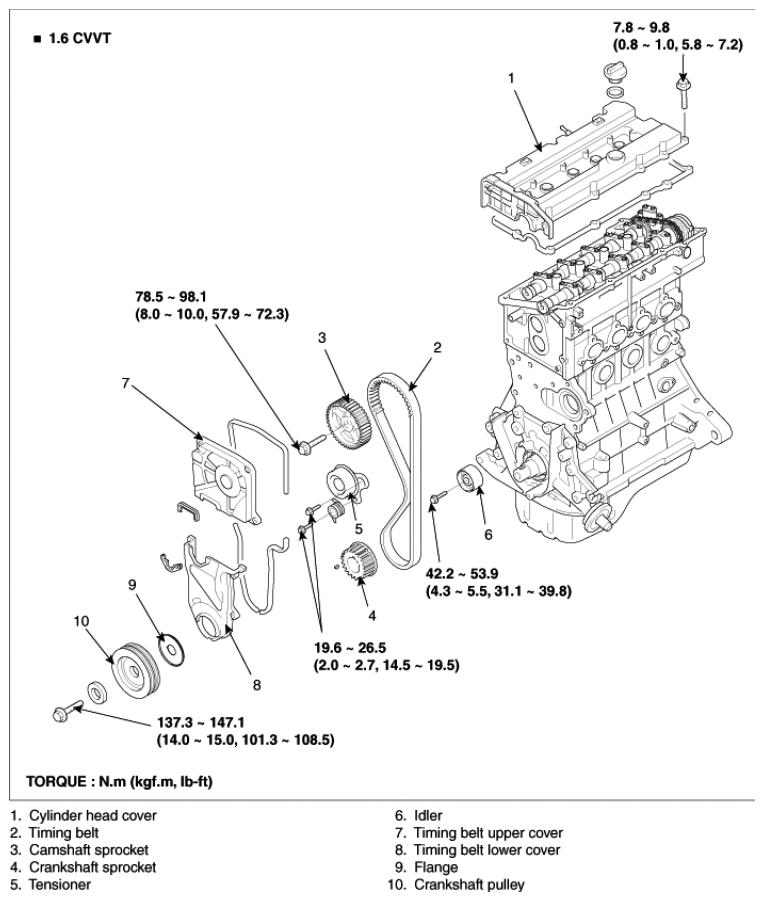

Fig 1: Identifying Timing Belt Components

G06828429

Courtesy of KIA MOTORS AMERICA, INC.
