PDM Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

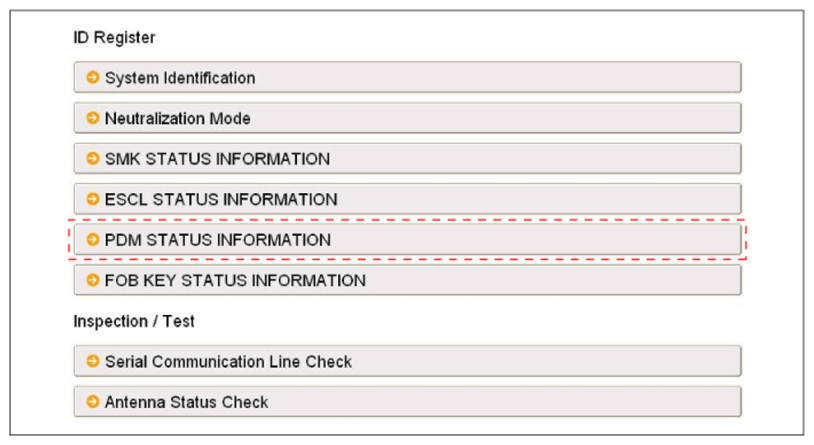

    Fig 1: Scantool Display - PDM STATUS INFO
    G07415729Courtesy of KIA MOTORS AMERICA, INC.

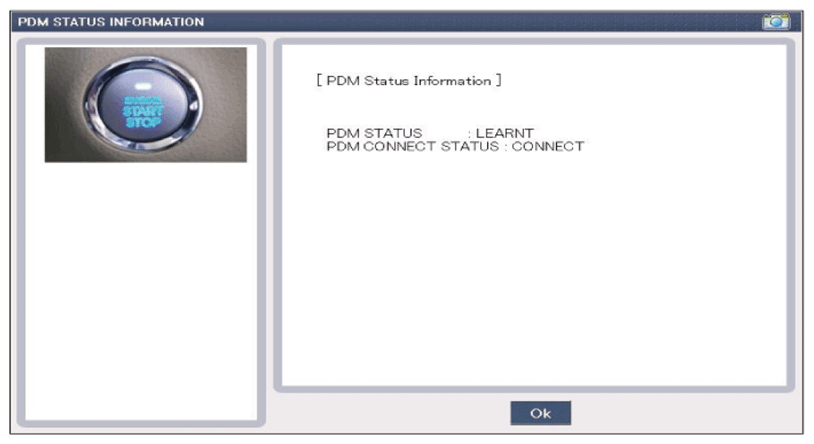

    Fig 2: Scantool Display - PDM STATUS INFO (Connect)
    G07415730Courtesy of KIA MOTORS AMERICA, INC.
