Home >> Kia >> 2011 >> Sorento Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Repair procedures >> Inspection >> Smart Key Status Check

Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

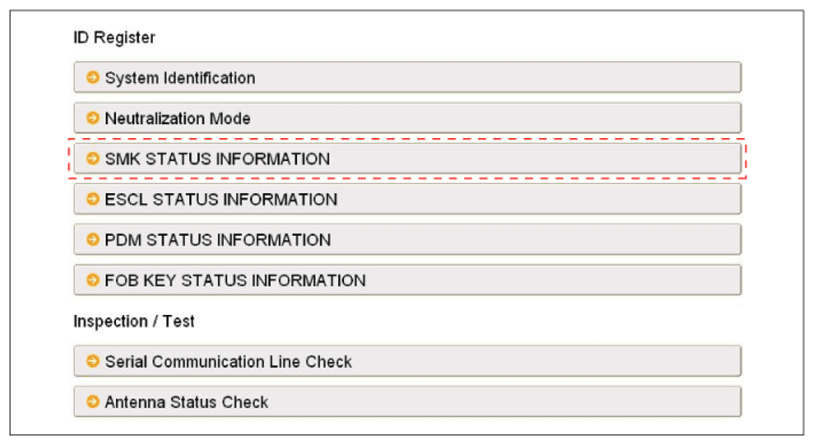

    Fig 1: Scantool Display - SMK STATUS INFO
    G07415727Courtesy of KIA MOTORS AMERICA, INC.

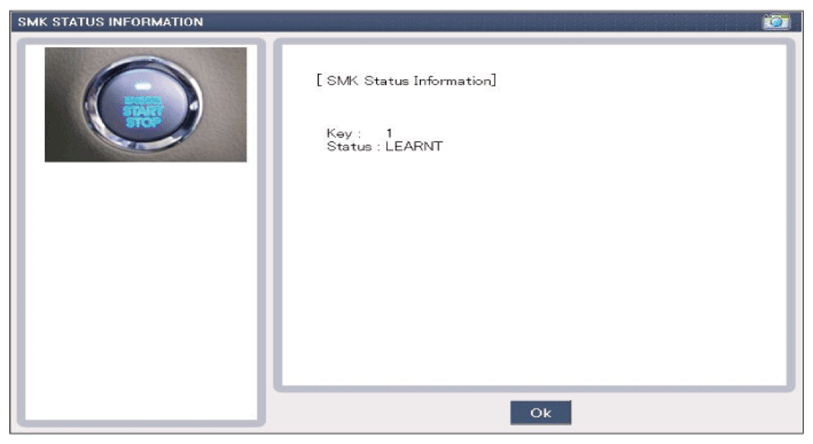

    Fig 2: Scantool Display - SMK STATUS INFO (Learnt)
    G07415728Courtesy of KIA MOTORS AMERICA, INC.
