Home >> Kia >> 2011 >> Sorento Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Ignition Switch Assembly >> Repair procedures >> Inspection

Repair procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    Fig 1: Identifying Ignition Switch Connector
    G07420222Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Identifying Key Warning Switch Connector
    G07420223Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

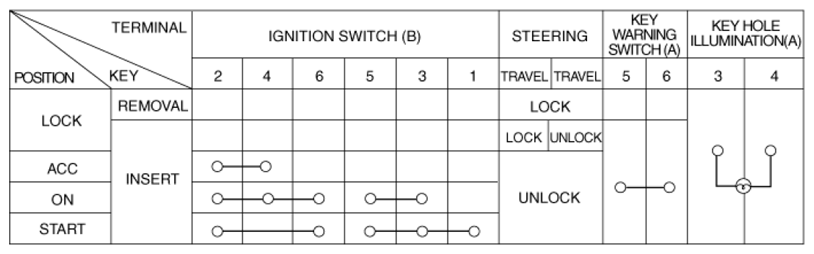

Fig 3: Ignition Switch Terminal Continuity Chart
G07420224Courtesy of KIA MOTORS AMERICA, INC.
