Main Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim and power window switch.
(Refer to "FRONT DOOR ")
Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

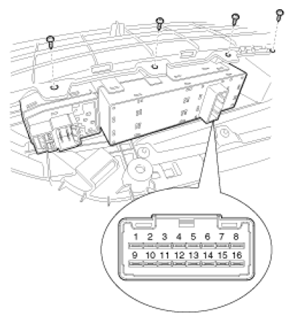

Fig 1: Identifying Main Power Window Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

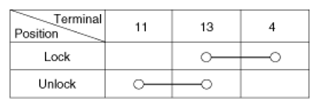

Fig 2: Main Power Window Switch Connector Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

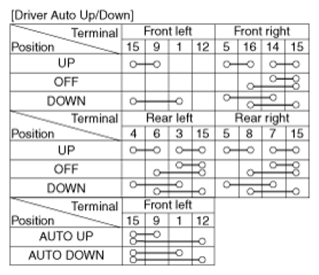

Fig 3: Main Power Window Switch Connector Terminals Continuity Chart (Driver Auto Up/Down)

Courtesy of KIA MOTORS AMERICA, INC.

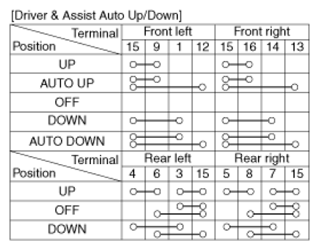

Fig 4: Main Power Window Switch Connector Terminals Continuity Chart (Driver And Assist Up/Down)

Courtesy of KIA MOTORS AMERICA, INC.

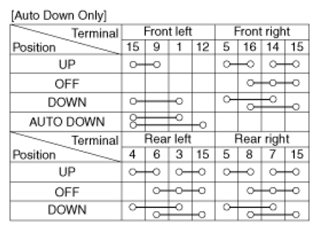

Fig 5: Main Power Window Switch Connector Terminals Continuity Chart (Auto Down)

Courtesy of KIA MOTORS AMERICA, INC.
