Power Windows: Troubleshooting

1. No windows operate from the main switch on the driver's door.

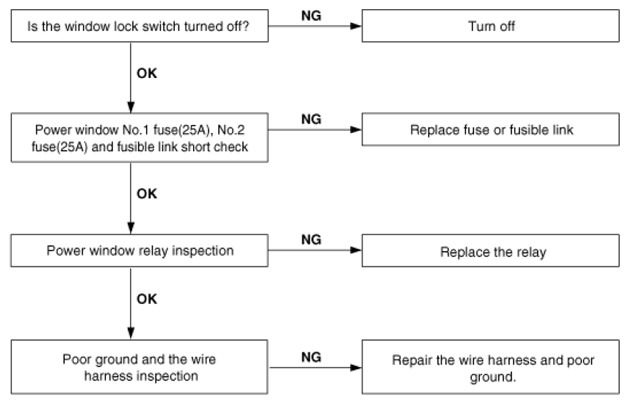

   Fig 1: Rear Power Window Switch Troubleshooting Flow Diagram

   Courtesy of KIA MOTORS AMERICA, INC.
2. Driver's side window does not operate.

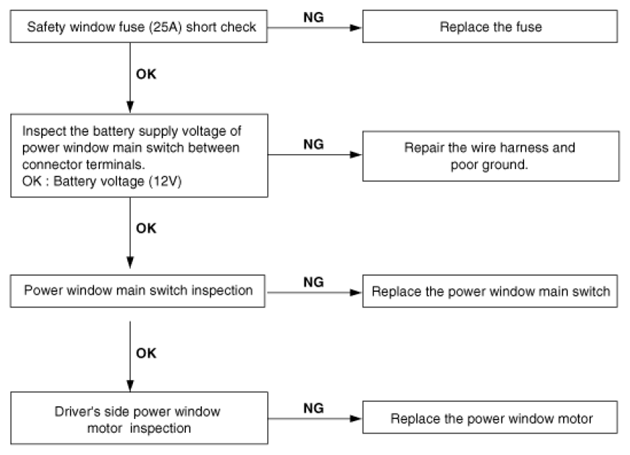

   Fig 2: Rear Power Window Switch Troubleshooting Flow Diagram

   Courtesy of KIA MOTORS AMERICA, INC.
3. Passenger's side window does not operate.

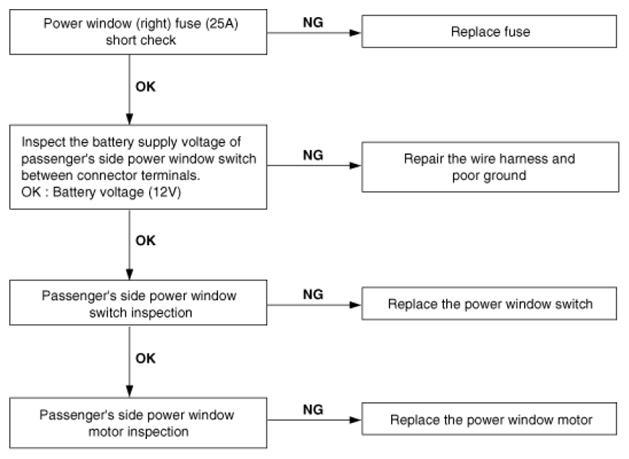

Fig 3: Rear Power Window Switch Troubleshooting Flow Diagram

Courtesy of KIA MOTORS AMERICA, INC.
