Home >> Kia >> 2011 >> Soul +, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L >> Shift Lever >> Component And Component Locations >> Components

Component And Component Locations: Components

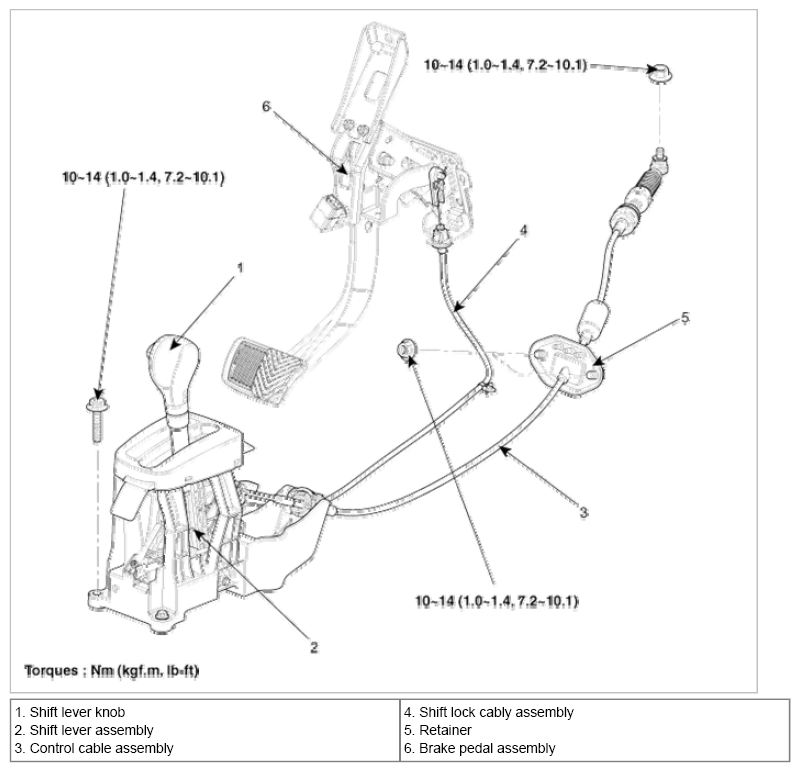

Fig 1: Shift Lever Replacement Components With Torque Specifications

G06523607

Courtesy of KIA MOTORS AMERICA, INC.
