Power Window Main Switch

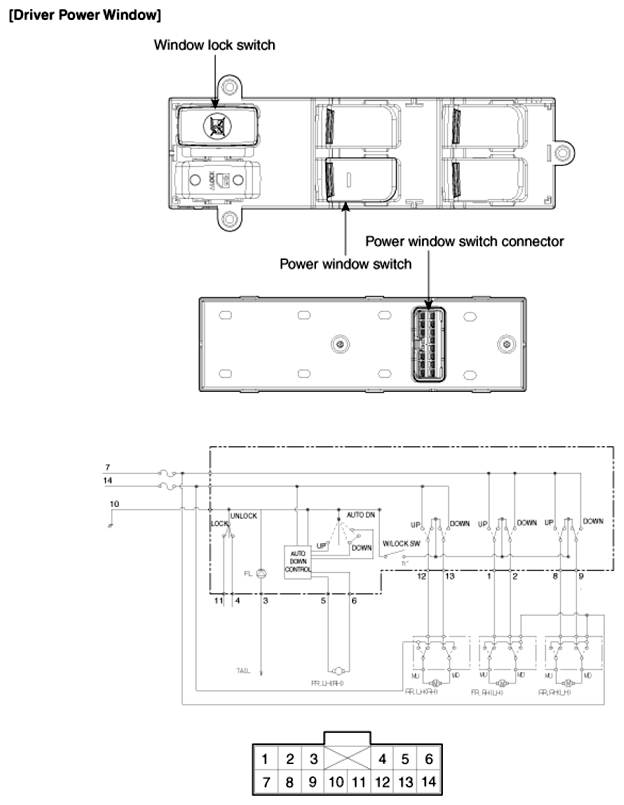

Fig 1: Identifying Power Window Main Switch, Connector, & Terminals
G06525509Courtesy of KIA MOTORS AMERICA, INC.

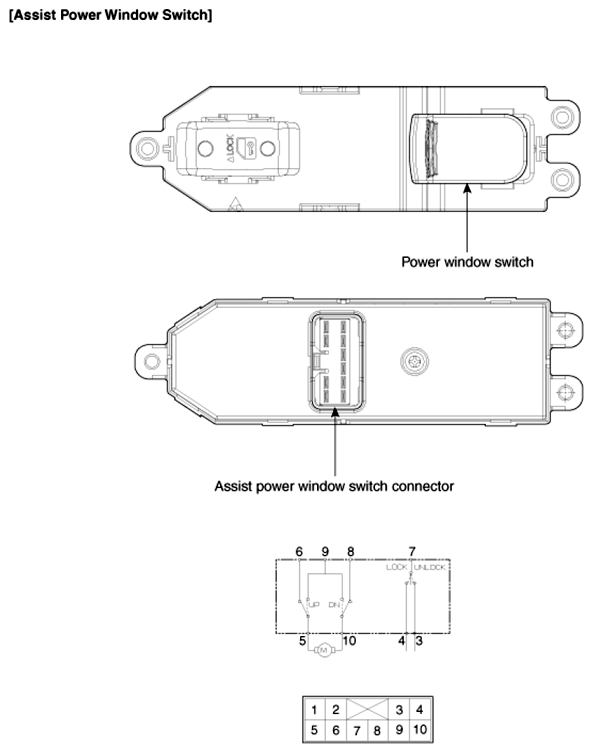

Fig 2: Identifying Power Window Assist Switch, Connector, & Terminals
G06525510Courtesy of KIA MOTORS AMERICA, INC.
