Power Window Main Switch Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to "FRONT DOOR ")

  3. Disconnect the connector from the switch.
  4. Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.
Fig 1: Power Window Main Switch Connector End View
G06525512Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Power Window Main Switch Continuity Chart - Lock/Unlock
G06525513Courtesy of KIA MOTORS AMERICA, INC.

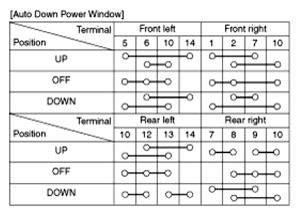

Fig 3: Power Window Main Switch Continuity Chart - Auto Down Power Window
G06525514Courtesy of KIA MOTORS AMERICA, INC.
