Repair Procedures: Disassembly

Remove the alternator cover (A).

Fig 1: Identifying Alternator Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts (A) and disconnect the brush holder assembly (B).

Fig 2: Identifying Mounting Bolts & Brush Holder Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the slip ring guide (A).

Fig 3: Identifying Slip Ring Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut, pulley (A) and spacer.

Fig 4: Identifying Pulley
Courtesy of KIA MOTORS AMERICA, INC.

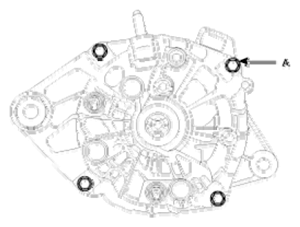

Loosen the 4 through bolts (A).

Fig 5: Identifying Through Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the rotor (A) and cover (B).

Fig 6: Identifying Rotor & Cover
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
