Repair Procedures: Replacement: Installation

  1. With a scraper, scrape the old adhesive smooth to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire windshield opening flange:
    1. Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
    2. Remove the rubber dam and fasteners from the body.
    3. Mask off surrounding surfaces before painting.
  2. Clean the bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease and water from getting on the clean surface.
  3. Install the windshield (A) upper molding (B) and fasteners (E).

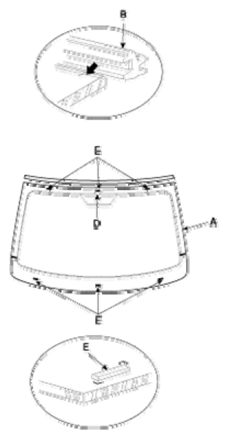

    Fig 1: Identifying Windshield, Upper Molding, & Fasteners
    G06525202Courtesy of KIA MOTORS AMERICA, INC.
  4. Install the spacer (A). Install the windshield glass (B) temporarily, making sure to position it in the center, and then make an alignment mark (C).
  5. Remove the windshield.

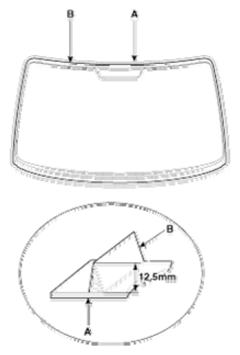

    Fig 2: Identifying Spacer, Windshield Glass, & Alignment Mark
    G06525203Courtesy of KIA MOTORS AMERICA, INC.
  6. With a sponge, apply a light coat of body primer to the original adhesive remaining around the windshield opening flange. Let the body primer dry for at least 10 minutes.
    1. Do not apply glass primer to the body, and be careful not to mix up glass and body primer sponges.
    2. Never touch the primed surfaces with your hands.
    3. Mask off the dashboard before painting the flange.
    Fig 3: Identifying Primer Application Area
    G06525204Courtesy of KIA MOTORS AMERICA, INC.
  7. Apply a light coat of glass primer to the outside of the fasteners.
    NOTE:
    • Never touch the primed surface with your hand. If you do, the adhesive may not bond to the glass properly, causing a leak after the windshield glass is installed.
    • Do not apply body primer to the glass.
    • Keep water, dust, and abrasive materials away from the primer.
    Fig 4: Applying Light Coat Of Glass Primer To Outside Of Fasteners
    G06525205Courtesy of KIA MOTORS AMERICA, INC.
  8. Pack adhesive into the cartridge without air pockets to ensure continuous delivery. Put the cartridge in a caulking gun, and run a bead of adhesive (A) around the edge of the windshield (B) between the fastener and molding as shown in Fig 5. Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.
    Fig 5: Applying Bead Of Adhesive Around Edge Of Windshield
    G06525206Courtesy of KIA MOTORS AMERICA, INC.
  9. Use suction cups (A) to hold the windshield over the opening, align it with the alignment marks (B) made in step  4 and set it down on the adhesive. Lightly push on the windshield until its edges are fully seated on the adhesive all the way around. Do not open or close the doors until the adhesive is dry.
    Fig 6: Installing Windshield
    G06525207Courtesy of KIA MOTORS AMERICA, INC.
  10. Scrape or wipe the excess adhesive off with a putty knife or towel. To remove adhesive from a painted surface or the windshield, wipe with a soft shop towel dampened with alcohol.
  11. Let the adhesive dry for at least one hour, then spray water over the windshield and check for leaks. Mark leaking areas, and let the windshield dry, then seal with sealant:
    1. Let the vehicle stand for at least four hours after windshield installation. If the vehicle has to be used within the first four, it must be driven slowly.
    2. Keep the windshield dry for the first hour after installation.
  12. Reinstall all remaining removed parts. Install the rearview mirror after the adhesive has dried thoroughly. Advise the customer not to do the following things for two the three days:
    1. Slam the door with all the windows rolled up.
    2. Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads)
