Components And Component Locations: Components

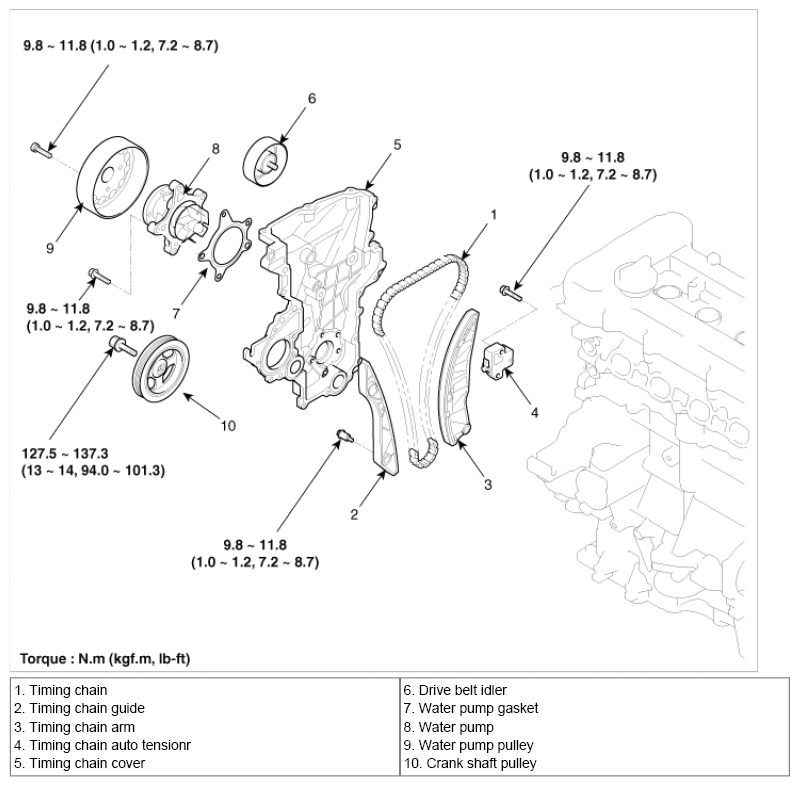

Fig 1: Timing System Replacement Components With Torque Specifications

G06525865

Courtesy of KIA MOTORS AMERICA, INC.
