ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ESCL STATUS INFO".

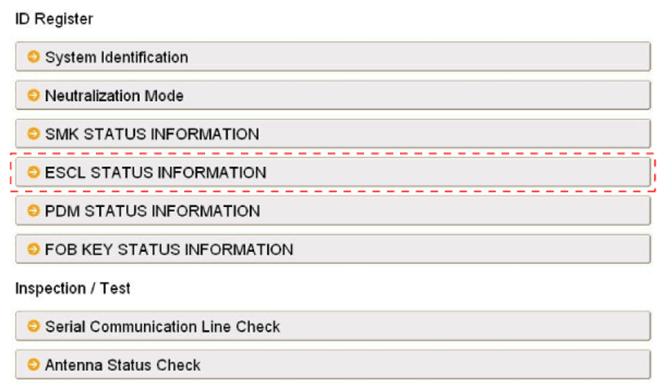

    Fig 1: Screen Display - Selecting ESCL Status Information
    G07369114Courtesy of KIA MOTORS AMERICA, INC.

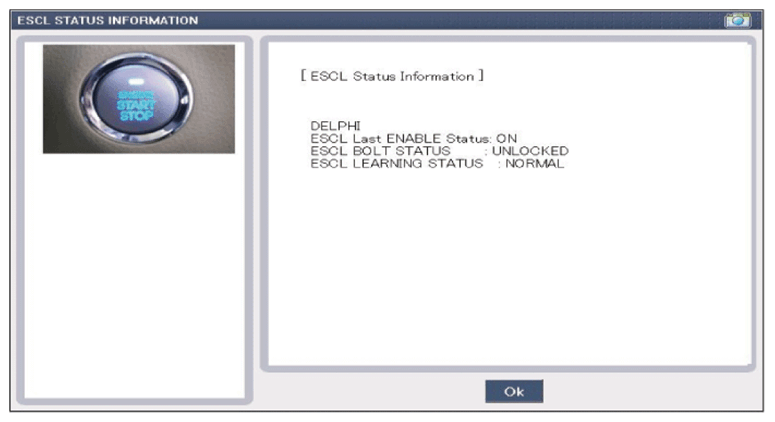

    Fig 2: Screen Display - ESCL Status Information
    G07369115Courtesy of KIA MOTORS AMERICA, INC.
