PDM Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

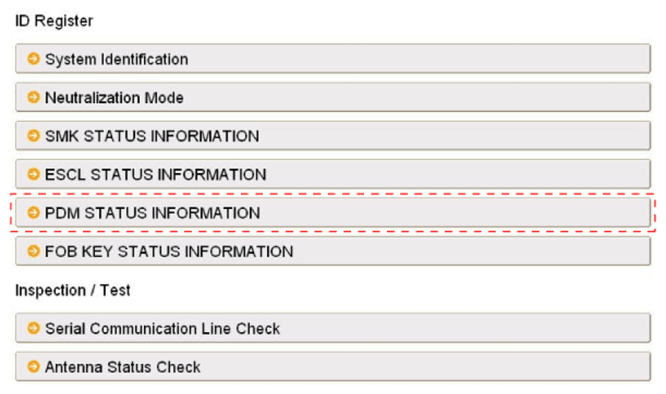

    Fig 1: Screen Display - Selecting PDM Status Information
    G07369112Courtesy of KIA MOTORS AMERICA, INC.

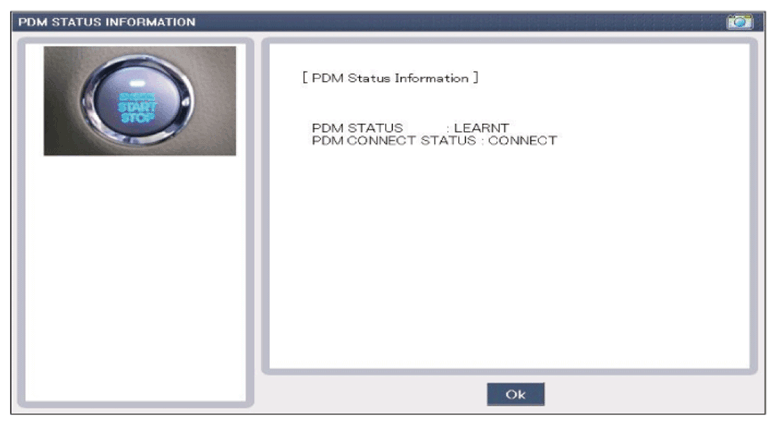

    Fig 2: Screen Display - PDM Status Information
    G07369113Courtesy of KIA MOTORS AMERICA, INC.
