Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Alternator >> Components and Components Location >> Component

Components and Components Location: Component

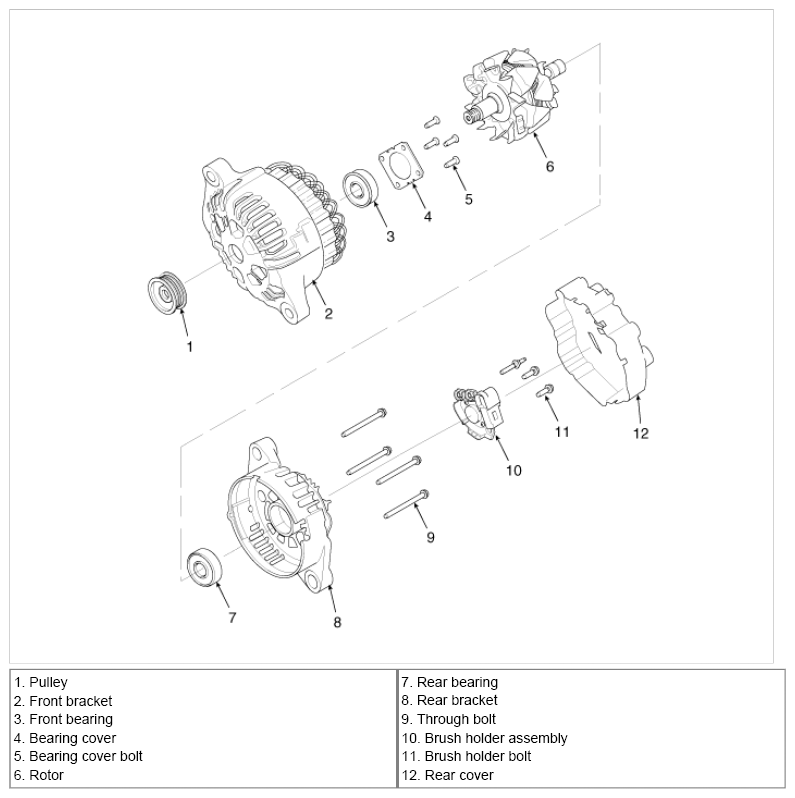

Fig 1: Exploded View Of Alternator
G07367691Courtesy of KIA MOTORS AMERICA, INC.
