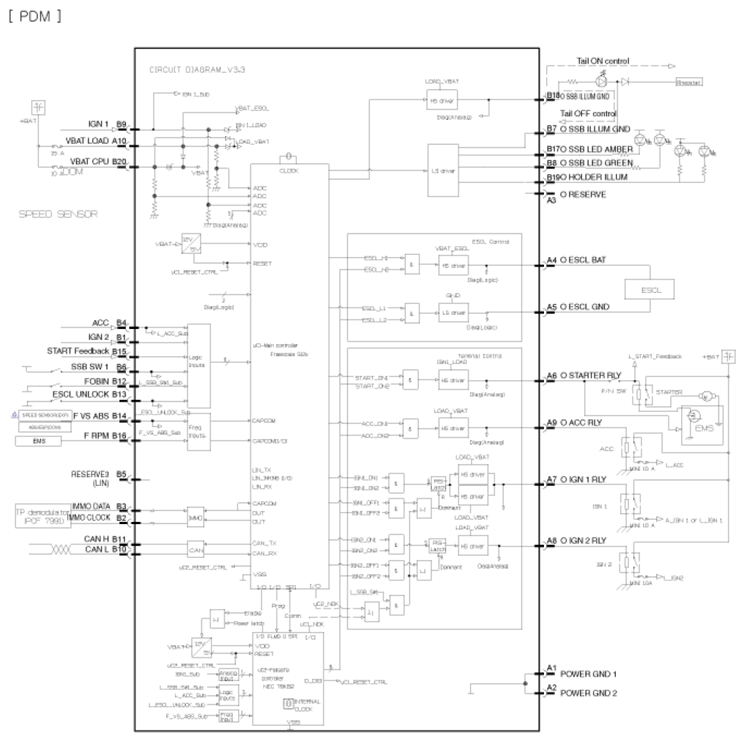

Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> PDM (Power Distribution Module) >> Schematic Diagrams >> System Circuit Diagram
