Home >> Kia >> 2012 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System >> Oil Pump >> Components And Components Location >> Components

Components And Components Location: Components

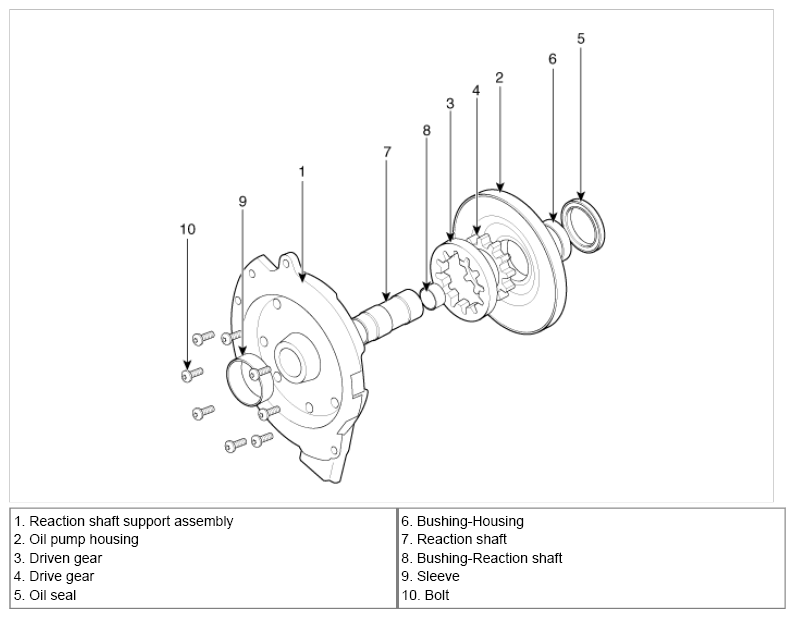

Fig 1: Exploded View Of Oil Pump
G07367958Courtesy of KIA MOTORS AMERICA, INC.
