Home >> Kia >> 2012 >> Forte LX, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 2.0L >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

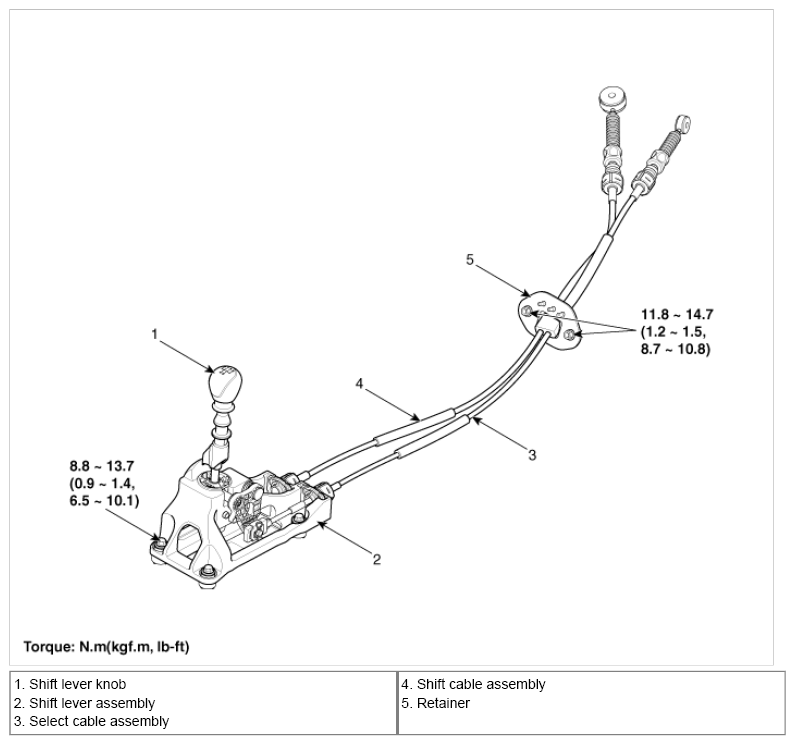

Fig 1: Shift Lever Components With Torque Specifications

G07367921

Courtesy of KIA MOTORS AMERICA, INC.
