Components And Components Location: Components

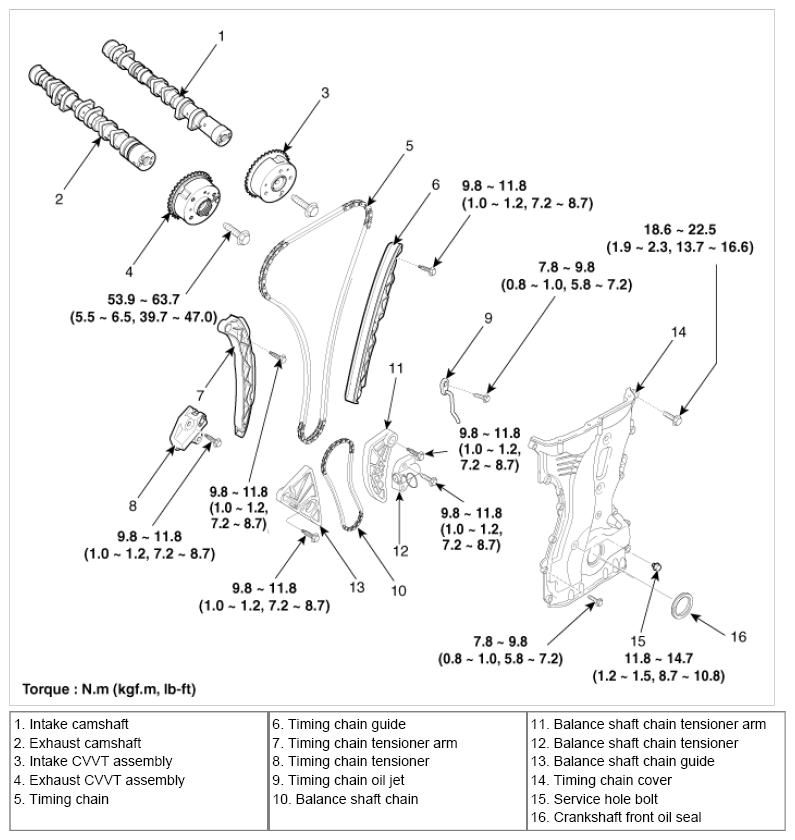

Fig 1: Exploded View Of Timing Chain Components With Torque Specifications

G07383324

Courtesy of KIA MOTORS AMERICA, INC.
