Components And Components Location: Components

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

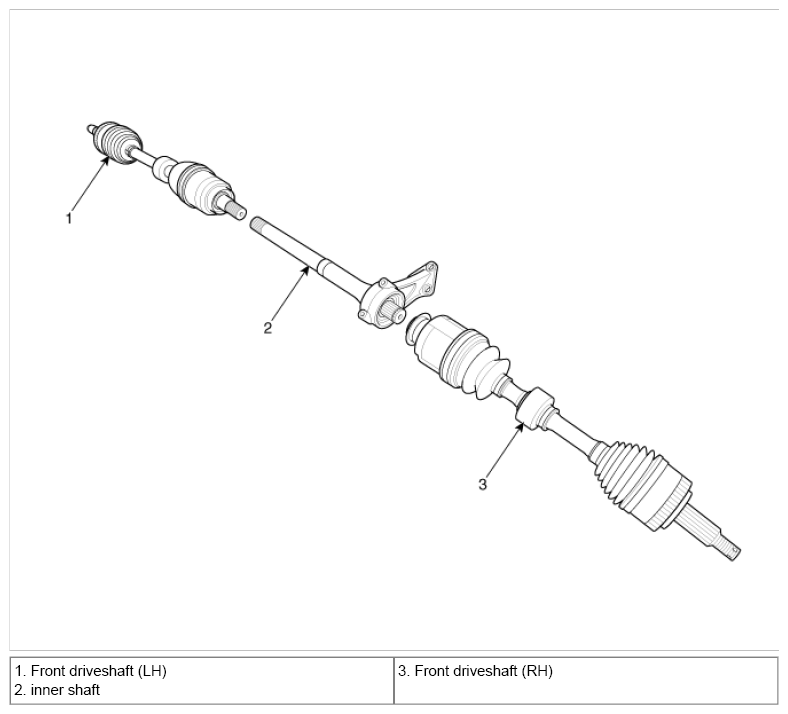

Fig 1: Identifying Right & Left Front Driveshaft & Inner Shaft

Courtesy of KIA MOTORS AMERICA, INC.

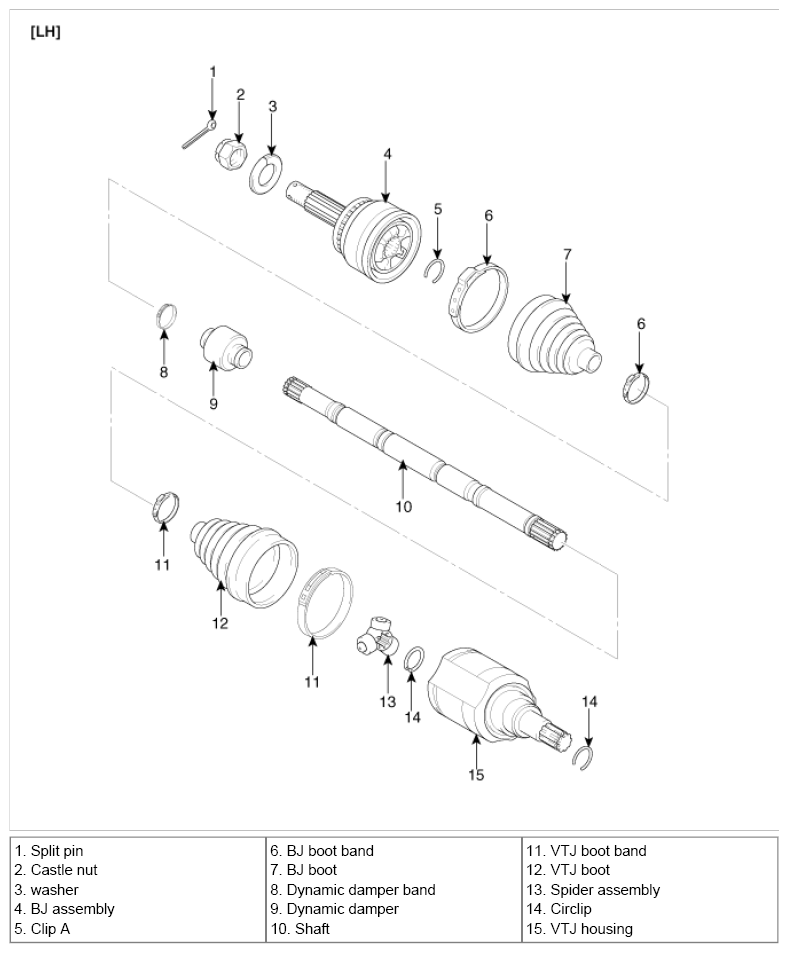

Fig 2: Exploded View Of LH Front Driveshaft

Courtesy of KIA MOTORS AMERICA, INC.

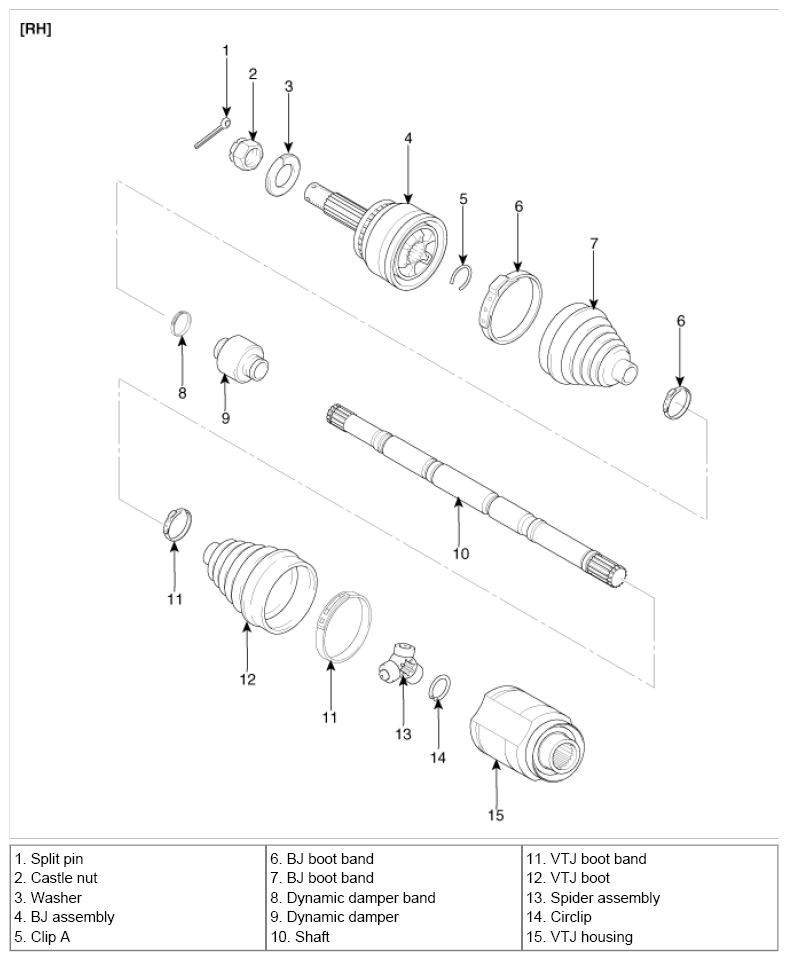

Fig 3: Exploded View Of RH Front Driveshaft

Courtesy of KIA MOTORS AMERICA, INC.
