Automatic Transaxle Control System - 2.0L
>>
Input Speed Sensor
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform

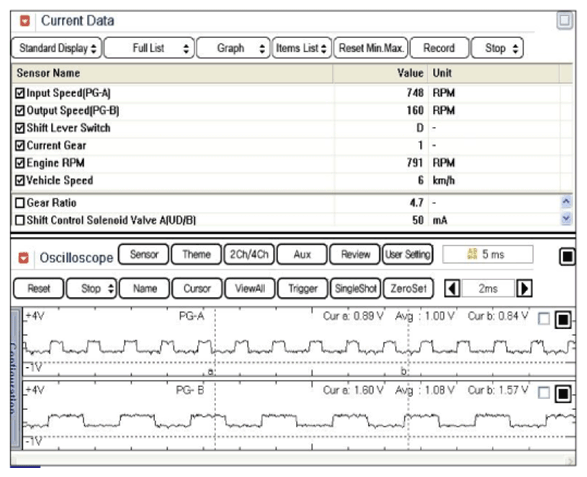

Fig 1: Screen Display - Input/Output Speed Sensor At Low Speed
Courtesy of KIA MOTORS AMERICA, INC.

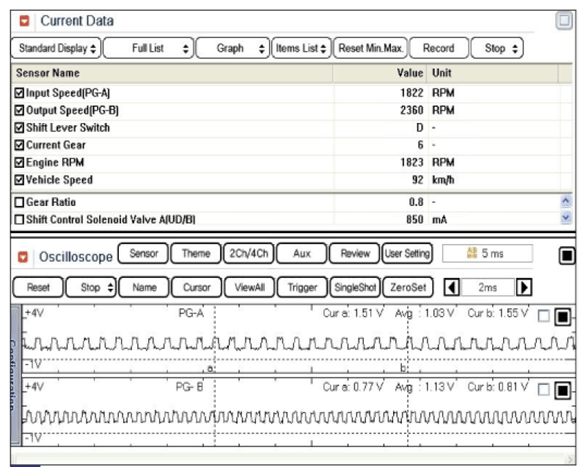

Fig 2: Screen Display - Input/Output Speed Sensor At High Speed
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
