Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "Neutralization mode".

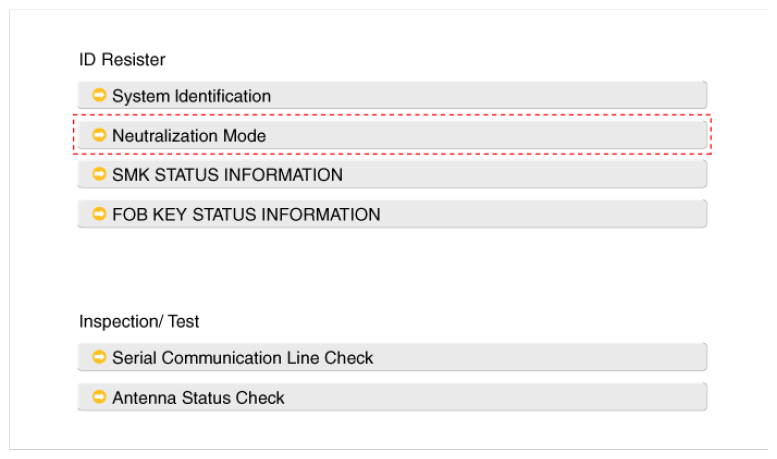

Fig 1: Selecting Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

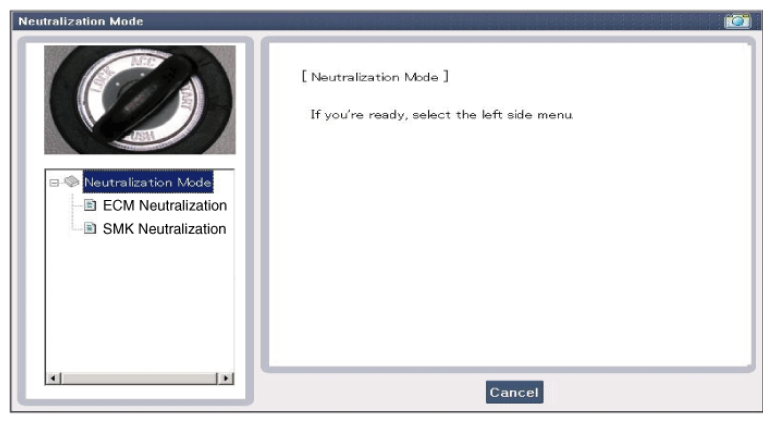

Fig 2: Screen Display - Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

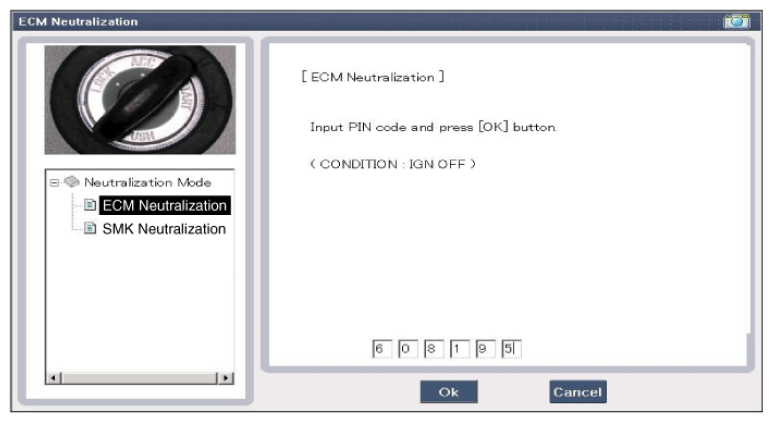

Fig 3: Screen Display - ECM Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

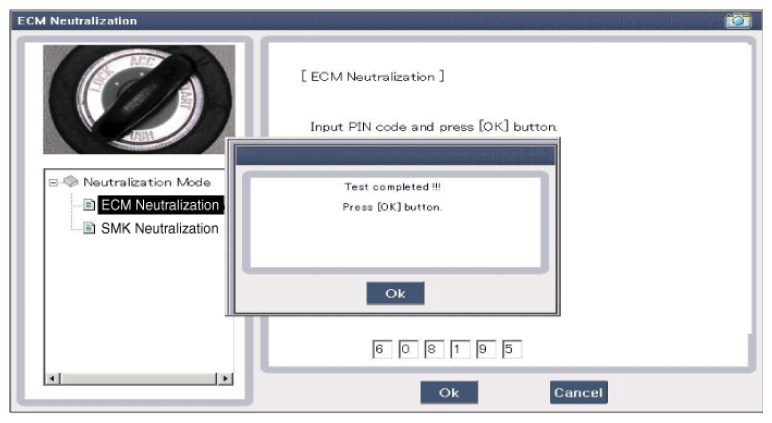

Fig 4: Screen Display - ECM Neutralization (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.

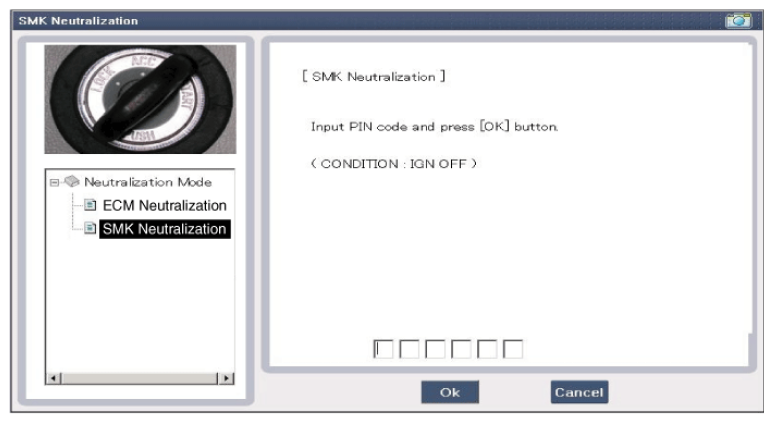

Fig 5: Screen Display - SMK Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

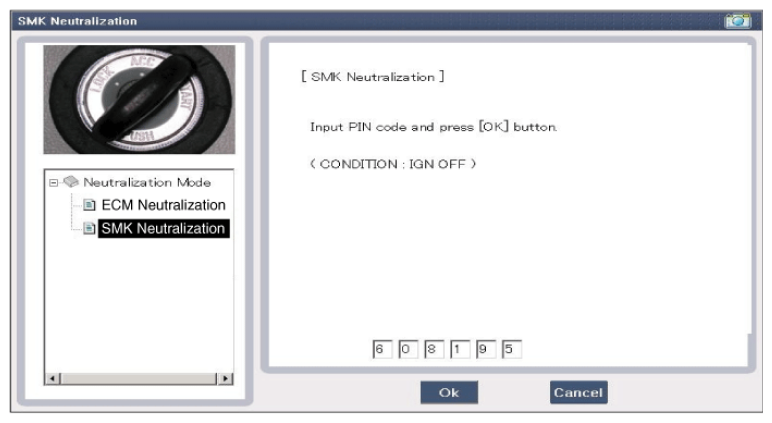

Fig 6: Screen Display - SMK Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

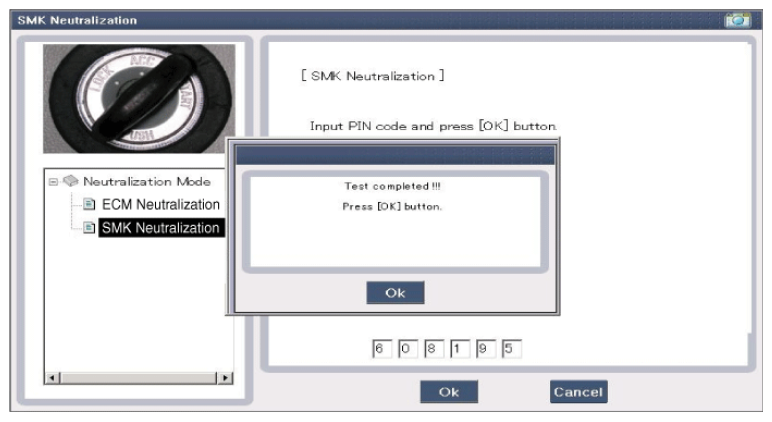

Fig 7: Screen Display - SMK Neutralization (Test Completed)
Courtesy of KIA MOTORS AMERICA, INC.

INPUT SWITCH SPECIFICATION

ACTUATOR REFERENCE

No.	Item name	Condition
1	Immo.indicator Lamp	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna 1 Active	Ignition switch ON Engine off
4	Interior Antenna 2 Active	Ignition switch ON Engine off
5	Bumper Antenna Active	Ignition switch ON Engine off
6	DRV DR Antenna Active	Ignition switch ON Engine off
7	AST DR Antenna Active	Ignition switch ON Engine off
