Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

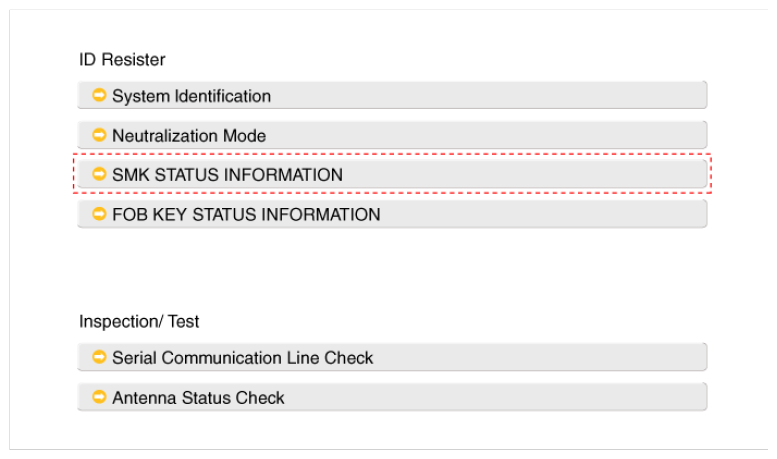

    Fig 1: Screen Display - Selecting SMK STATUS INFO
    G08322869Courtesy of KIA MOTORS AMERICA, INC.

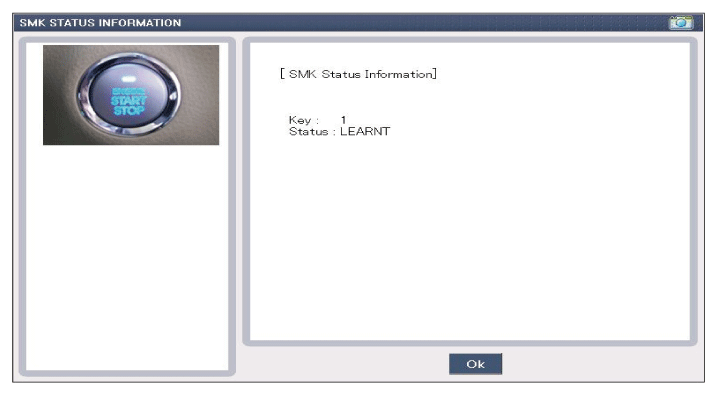

    Fig 2: Screen Display - SMK STATUS INFORMATION
    G08322870Courtesy of KIA MOTORS AMERICA, INC.
