Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

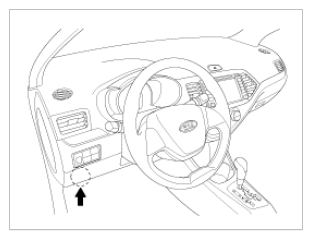

Fig 1: Locating Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

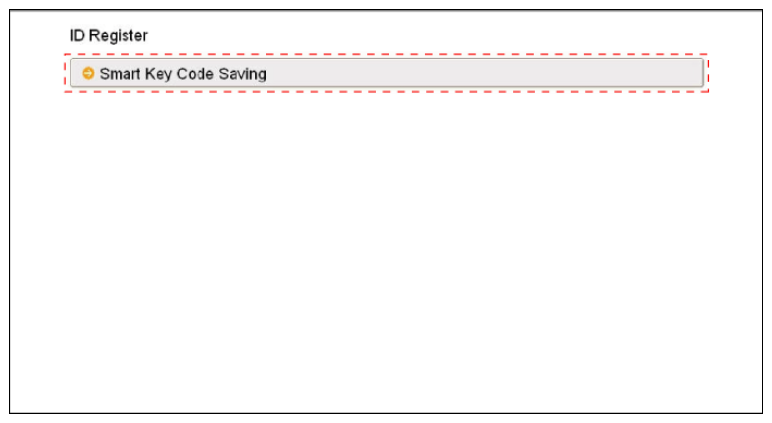

Fig 2: Selecting Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key code saving" menu, push "Enter" key, then the screen will be shown as below.

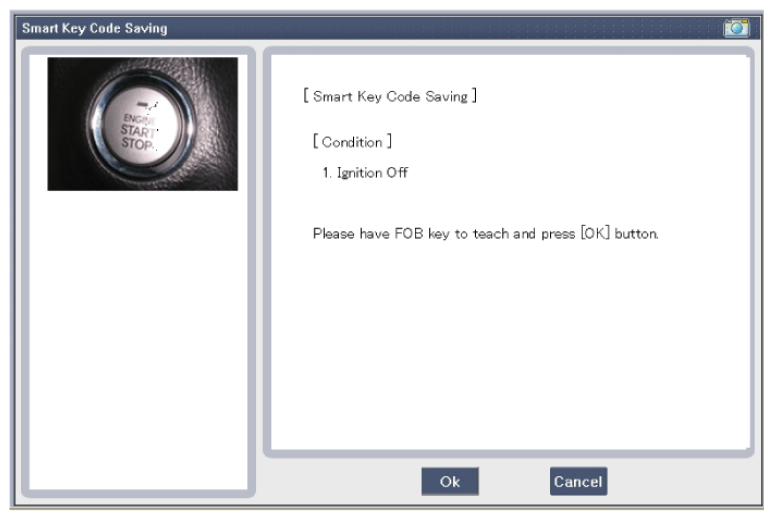

Fig 3: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After pushing the SSB with the teaching key, press "OK" button.

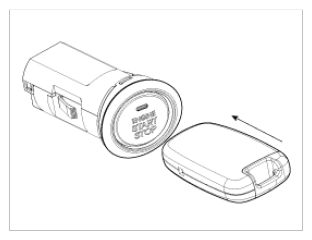

Fig 4: Pushing SSB With Teaching Key
Courtesy of KIA MOTORS AMERICA, INC.
Input the "Pin code" for first key teaching.

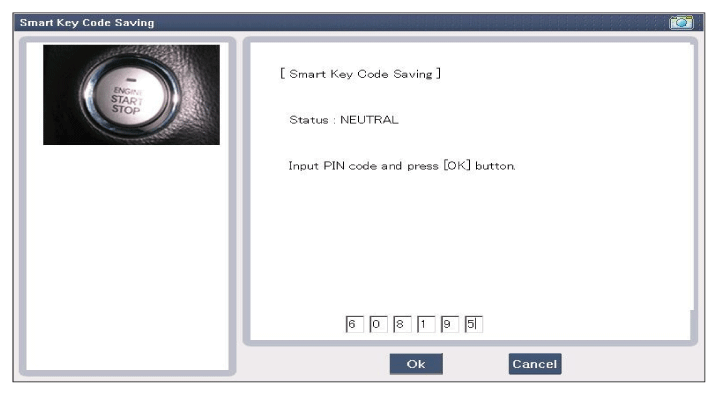

Fig 5: Screen Display - Smart Key Code Saving (Input Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

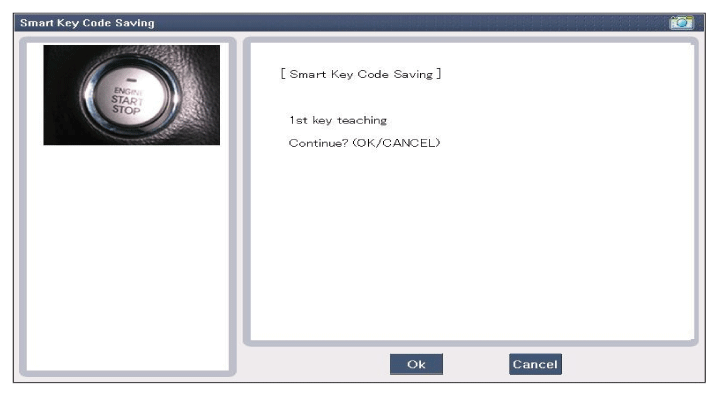

Fig 6: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

Fig 7: Screen Display - Smart Key Code Saving (1st Key Teaching)
Courtesy of KIA MOTORS AMERICA, INC.

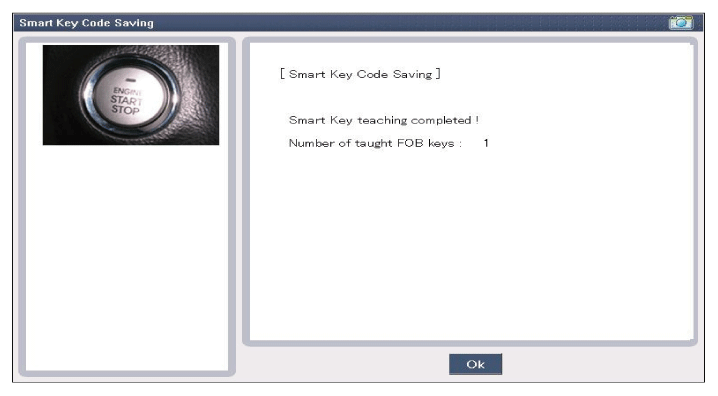

Fig 8: Screen Display - Smart Key Code Saving (Smart Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Input the "Pin code" for second key teaching.

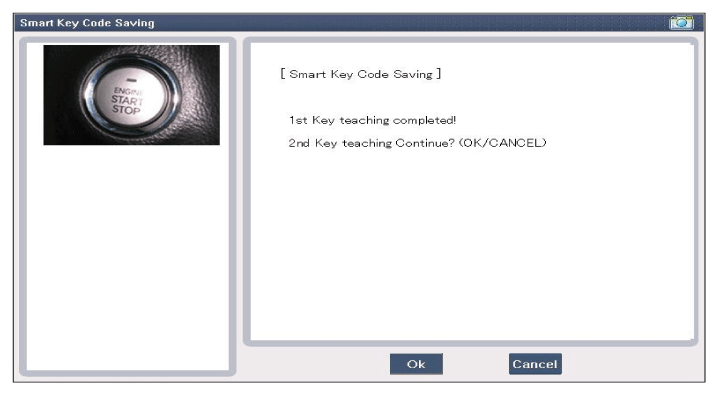

Fig 9: Screen Display - Smart Key Code Saving (1st Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.

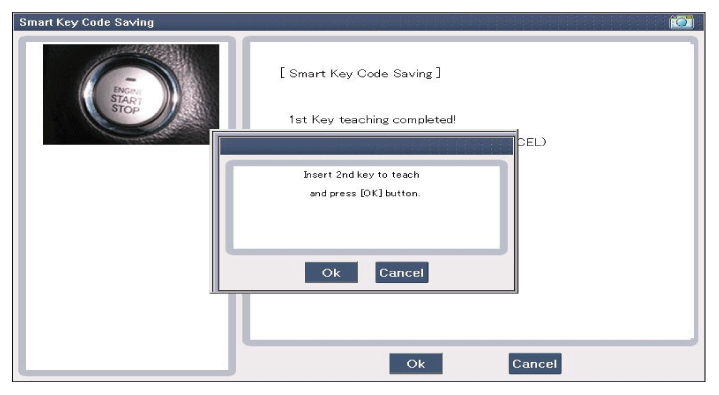

Fig 10: Screen Display - Smart Key Code Saving (Insert 2Nd Key To Teach)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

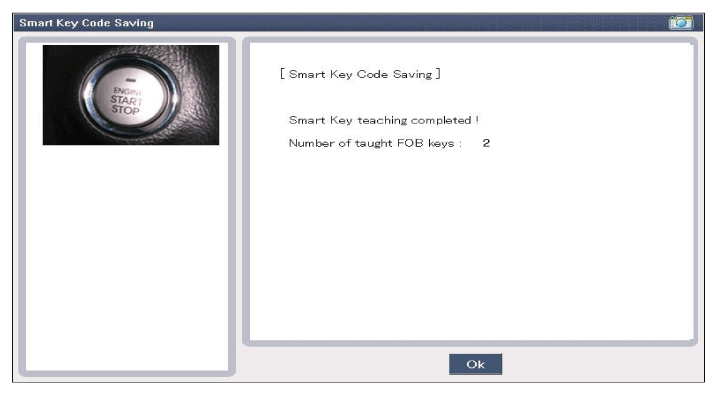

Fig 11: Screen Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be shown as below when key teaching process is completed.
