Idle Stop & Go (ISG) System
>>
Components and Components Location
>>
Components Location
Components Location

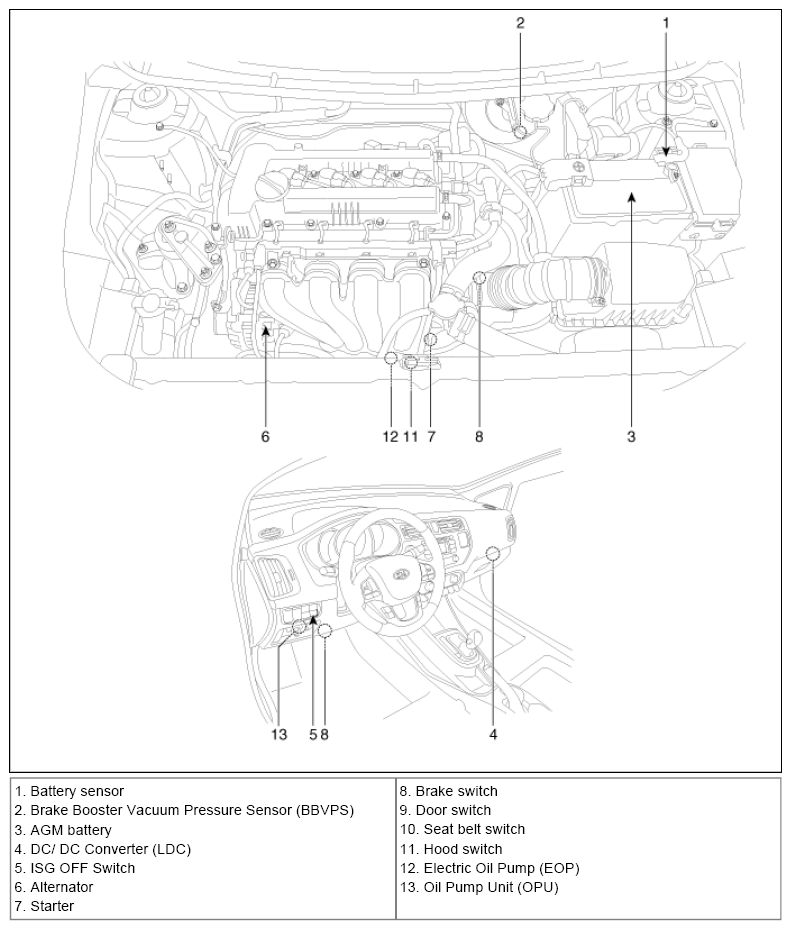

Fig 1: Identifying Engine Control/Fuel System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

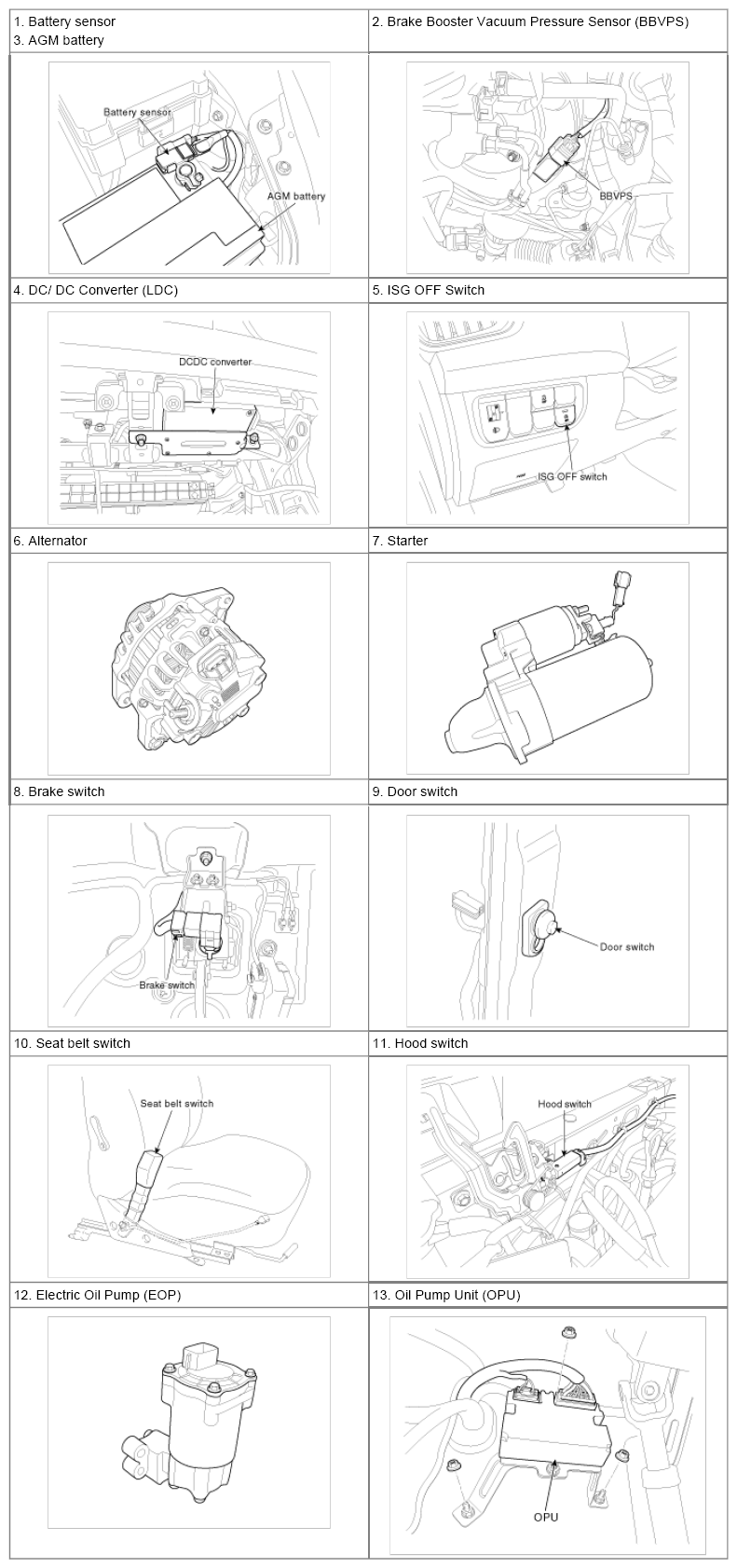

Fig 2: Identifying Engine Control/Fuel System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
