lemon-mirror
:
Home
>>
Kia
>>
2012
>>
Sedona EX
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Components And Components Location
>>
Components Location
Components Location

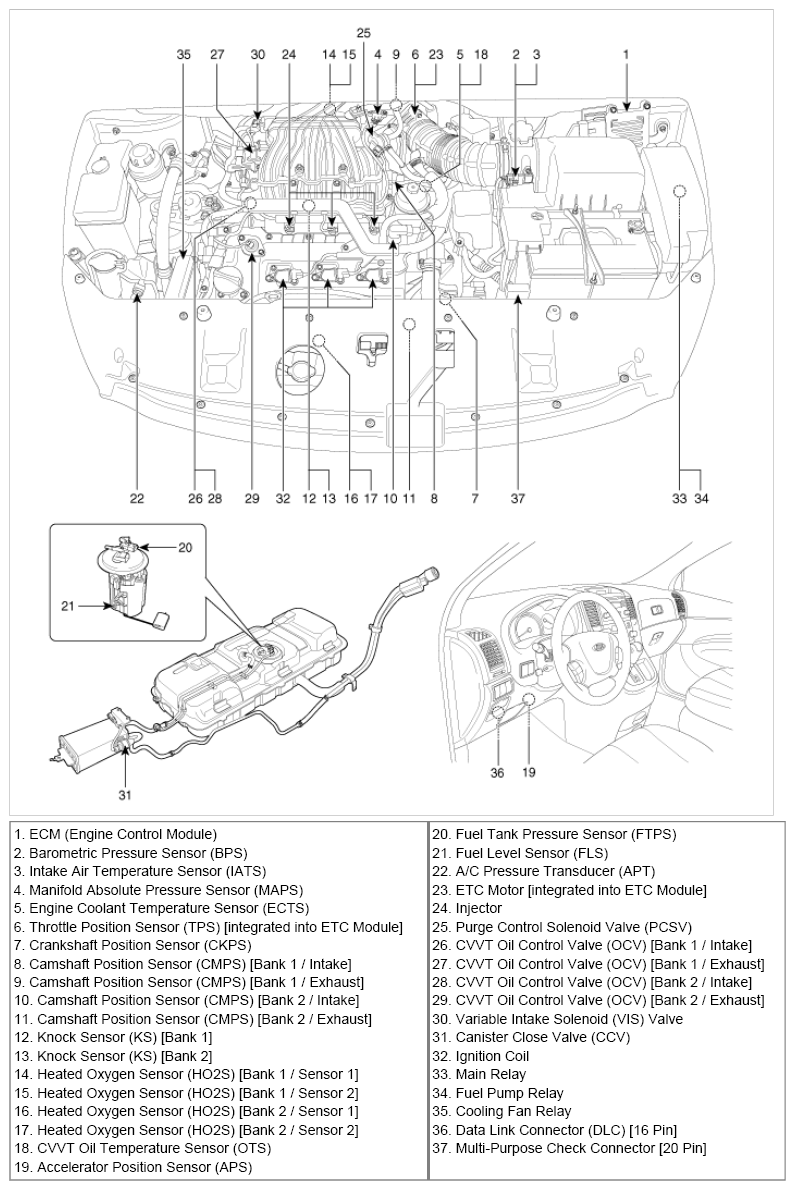

Fig 1: Identifying Engine Control System Components Location (1 Of 5)

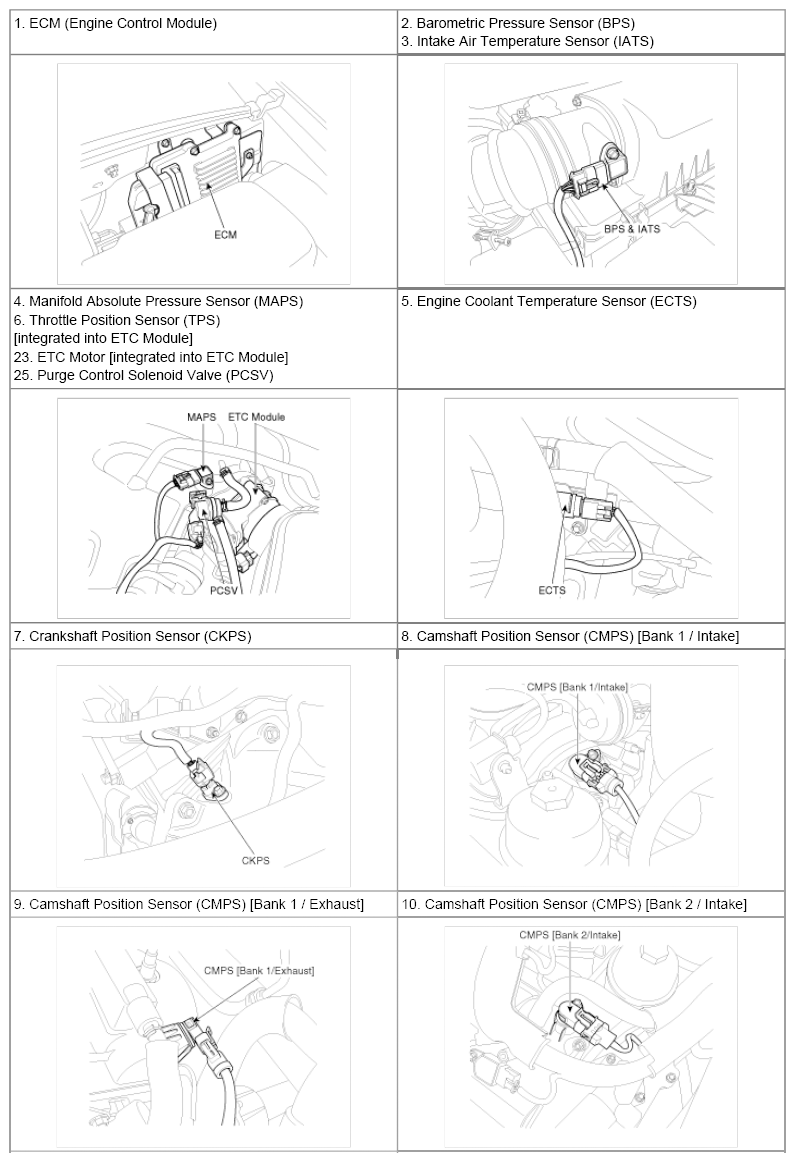

Fig 2: Identifying Engine Control System Components Location (2 Of 5)

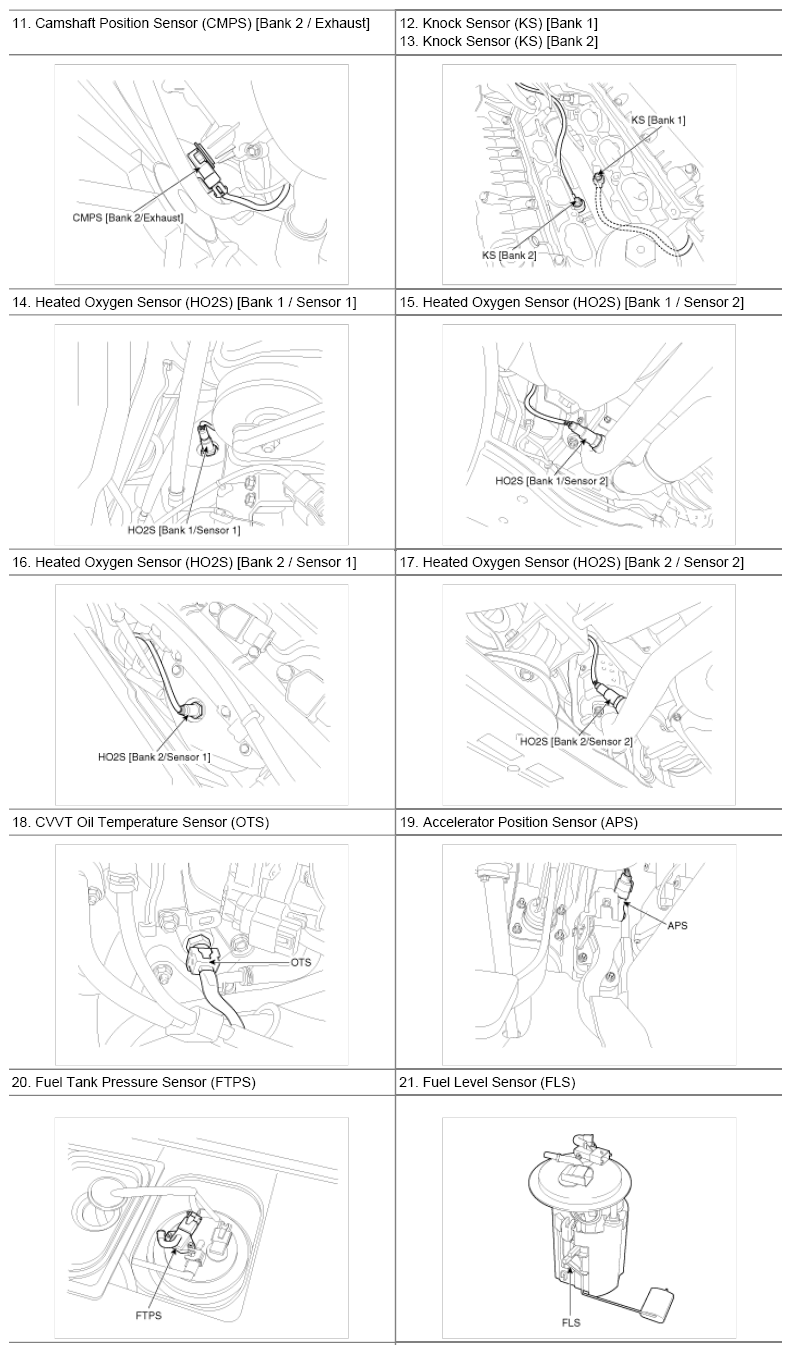

Fig 3: Identifying Engine Control System Components Location (3 Of 5)

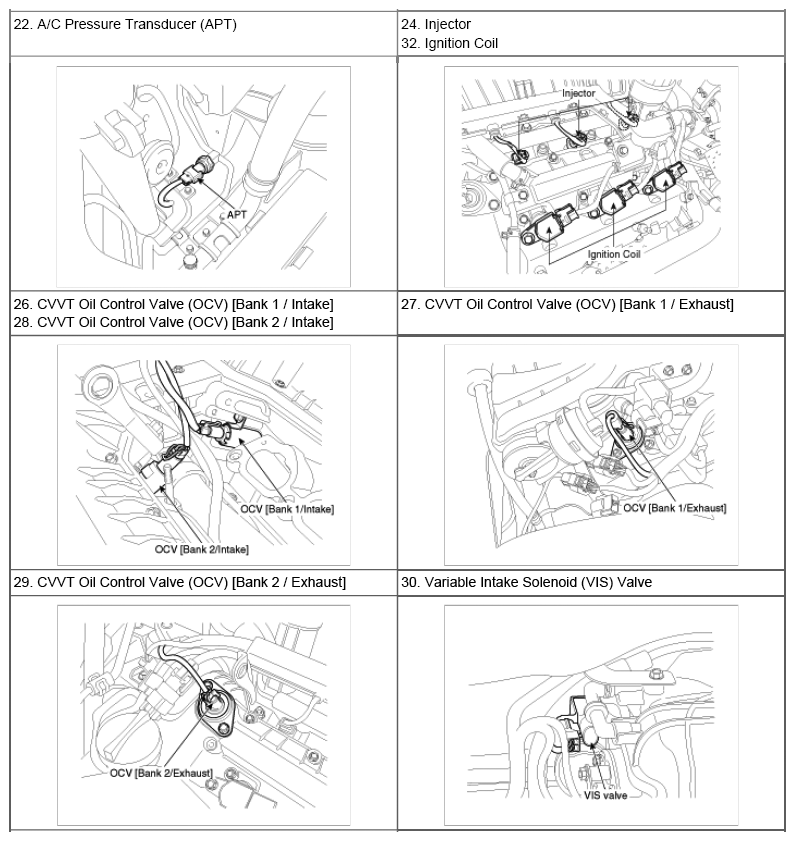

Fig 4: Identifying Engine Control System Components Location (4 Of 5)

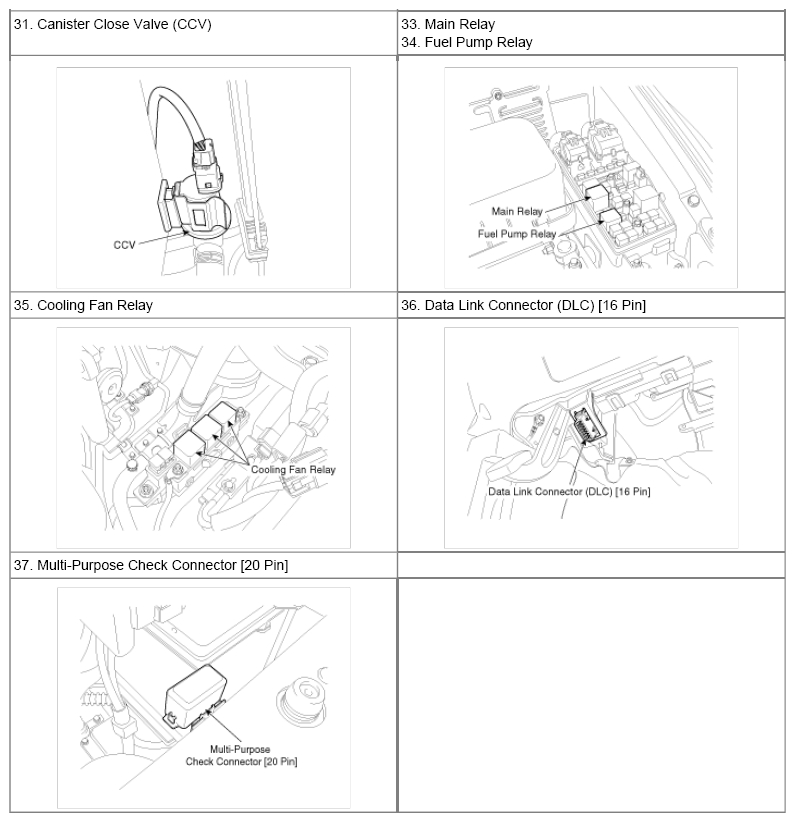

Fig 5: Identifying Engine Control System Components Location (5 Of 5)
