Inspect Spark Plug

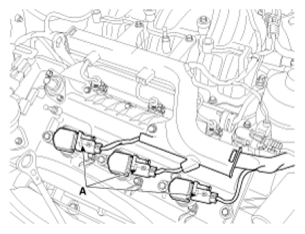

Remove the ignition coil connector (A).

Fig 1: Ignition Coil Connectors
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Fig 2: Identifying Lock Pin & Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (A).

Fig 3: Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.
Using a spark plug socket, remove the spark plug.
CAUTION: Be careful that no contaminates enter through the spark plug holes.

Inspect the electrodes (A) and ceramic insulator (B).

Fig 4: Electrodes & Ceramic Insulator

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Of Electrodes

ELECTRODE SPECIFICATION

Condition	Dark deposits	White deposits
Description	Fuel mixture too rich Low air intake	Fuel mixture too lean Advanced ignition timing Insufficient plug tightening torque

Check the electrode gap (A).
Standard : 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.)

Fig 5: Checking Electrode Gap
Courtesy of KIA MOTORS AMERICA, INC.
