Automatic Transaxle System
>>
Automatic Transaxle
>>
Components And Components Location
>>
Components (2)
Components (2)

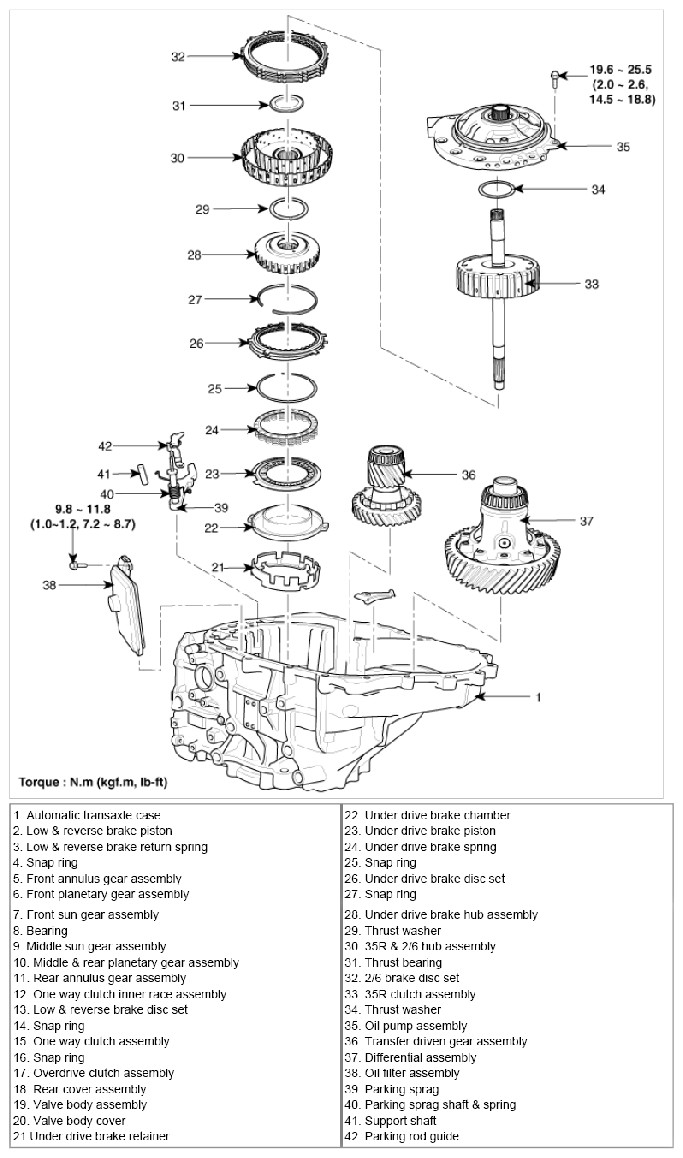

Fig 1: Exploded View Of Automatic Transaxle Components With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
