Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the ECM Connector (A).

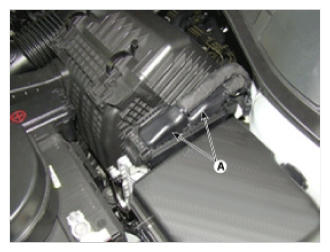

    Fig 1: ECM Connector (VIN 6)
    G09764291Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the battery.

    (Refer to "BATTERY ")

  4. Remove the air cleaner assembly.

    (Refer to "AIR CLEANER ")

  5. Remove the mounting bolt (A) and nuts (B), and then remove the ECM (C).

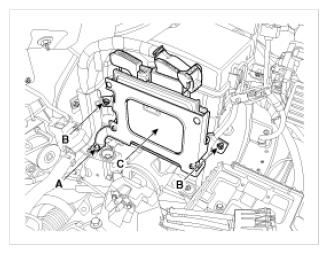

    Fig 2: ECM Component Location, Mounting Bolt And Nuts (VIN 6)
    G09764292Courtesy of KIA MOTORS AMERICA, INC.
  6. After removing the installation nuts (A) and screws (B), remove the ECM (C) from the bracket.

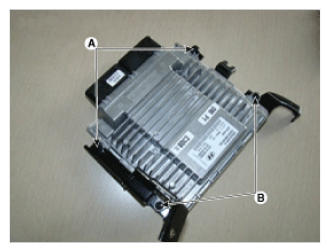

    Fig 3: ECM, Nuts And Screws (VIN 6)
    G09764293Courtesy of KIA MOTORS AMERICA, INC.
