Barometric Pressure Sensor (BPS): Specification

VOLTAGE SPECIFICATION CHART

Pressure (kPa)	Output Voltage (V)
10.0	0.50
55.0	2.21
100.0	3.93
115.0	4.50

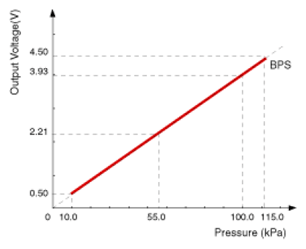

Fig 1: Barometric Pressure Sensor Output Voltage Graph

Courtesy of KIA MOTORS AMERICA, INC.
