PDM Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

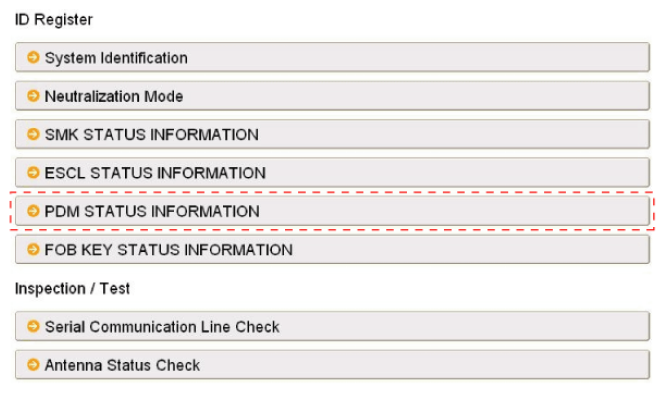

    Fig 1: Display - PDM Status Information
    G08329070Courtesy of KIA MOTORS AMERICA, INC.

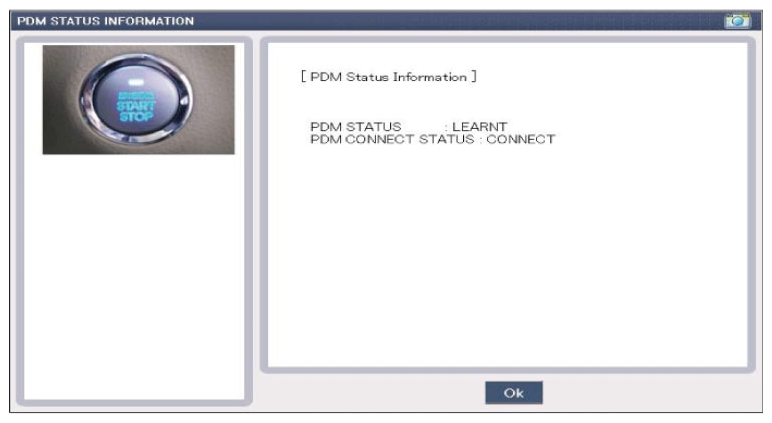

    Fig 2: Display - PDM Status Information Screen
    G08329071Courtesy of KIA MOTORS AMERICA, INC.
