Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

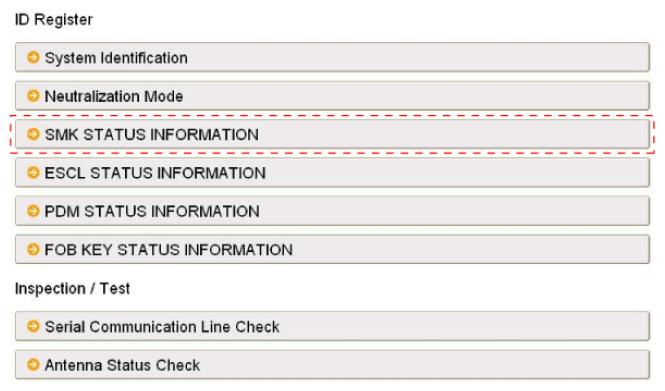

    Fig 1: Display - SMK Status Information
    G08329068Courtesy of KIA MOTORS AMERICA, INC.

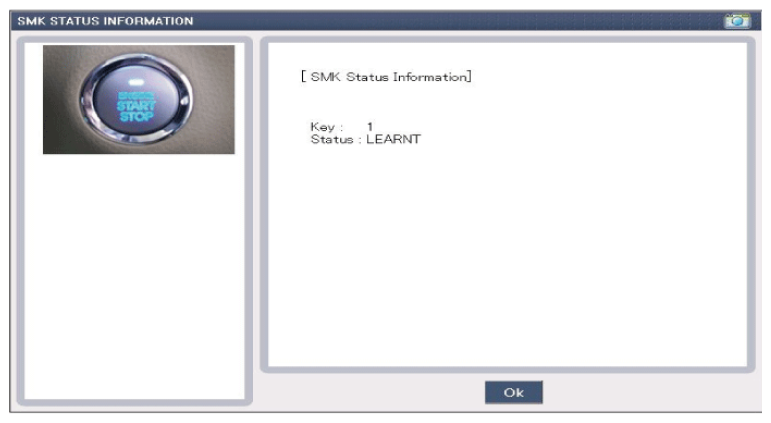

    Fig 2: Display - SMK Status Information Screen
    G08329069Courtesy of KIA MOTORS AMERICA, INC.
