Components Location

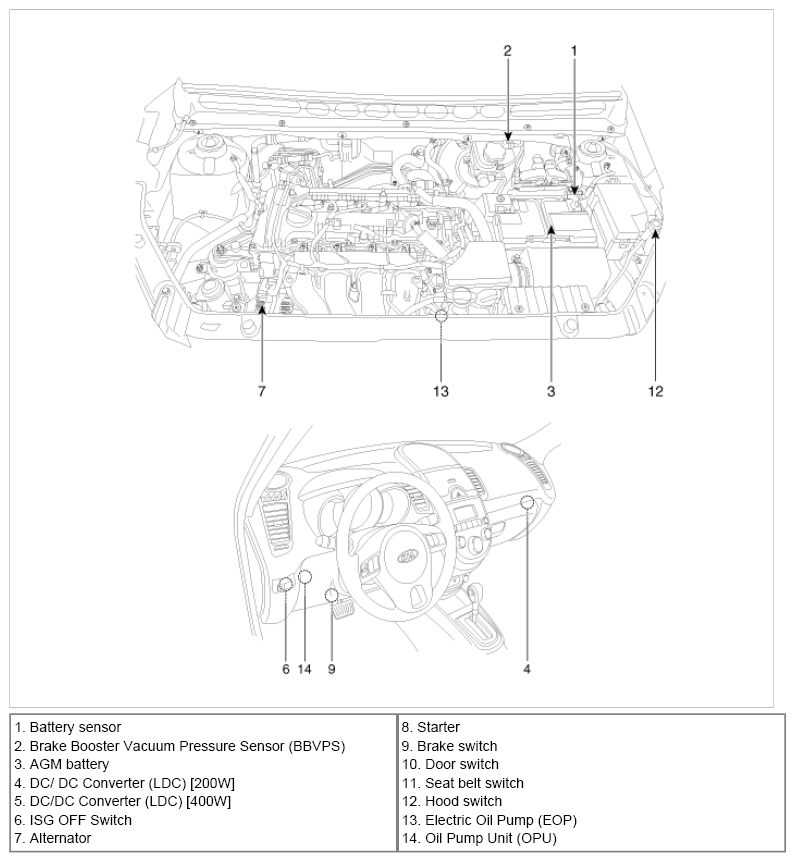

Fig 1: Engine Control/Fuel System Components Location

Courtesy of KIA MOTORS AMERICA, INC.

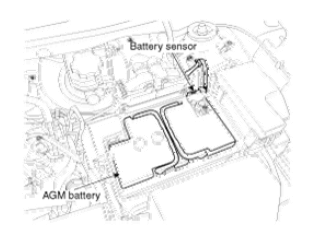

1. Battery sensor 3. AGM battery	2. Brake Booster Vacuum Pressure Sensor (BBVPS)

4. DC/DC Converter (LDC) [200W]	5. DC/DC Converter (LDC) [400W]

6. ISG OFF Switch	7. Alternator

8. Starter	9. Brake switch

10. Door switch	11. Seat belt switch

12. Hood switch	13. Electric Oil Pump (EOP)

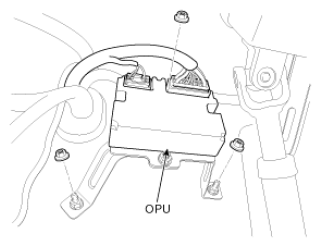

14. Oil Pump Unit (OPU)
