Home >> Kia >> 2012 >> Soul ! >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Control System - 2.0L >> Shift Lock Cable >> Components and Components Location >> Components

Components and Components Location: Components

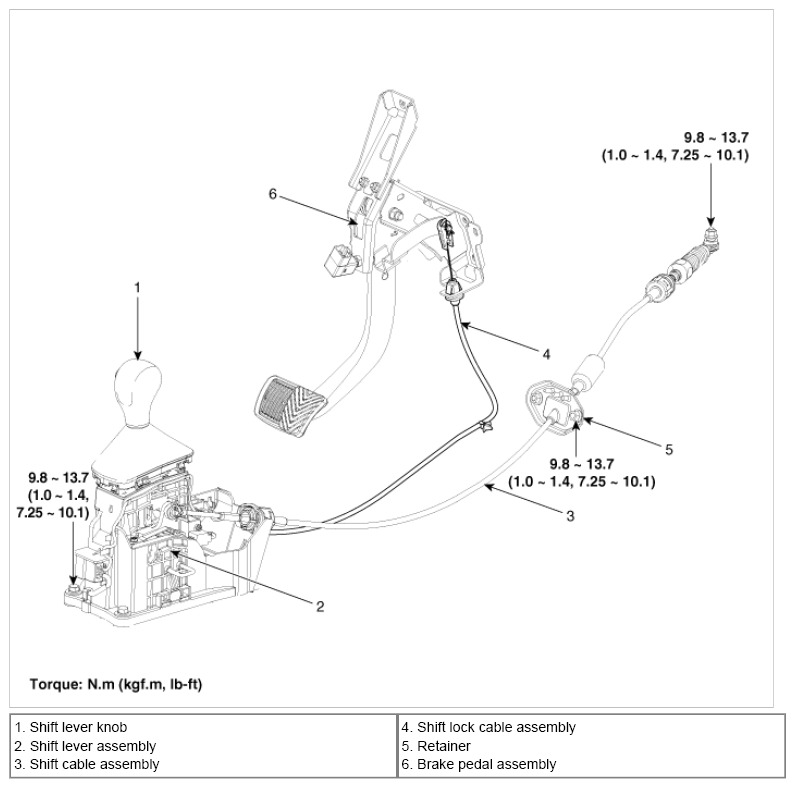

Fig 1: Shift Lock Cable Replacement Components With Torque Specifications
G08331309Courtesy of KIA MOTORS AMERICA, INC.
