Repair procedures: Removal

Remove the floor console assembly.
(Refer to "CONSOLE ".)
Disconnect sports mode connector (A).

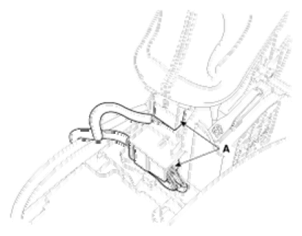

Fig 1: Identifying Sports Mode Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable (A).

Fig 2: Locating Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting nut (A) and shift lock cable from the shift lock cam (B).
Tightening torque:

9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)

Fig 3: Identifying Shift Lock Cam And Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly (A) by removing the bolts.
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

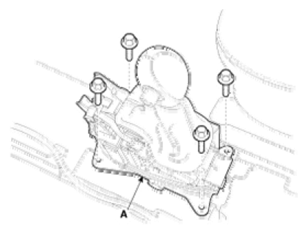

Fig 4: Identifying Shift Lever Assembly And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- When installing, set room side lever and T/M side lever to N position.
- Adjust the shift lock cable after installing.
  (Refer to "SHIFT LOCK CABLE (ADJUST) " in this group)
