Home >> Kia >> 2012 >> Soul Base, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System - 1.6L >> Oil Pump >> Components and Components Location >> Components

Components and Components Location: Components

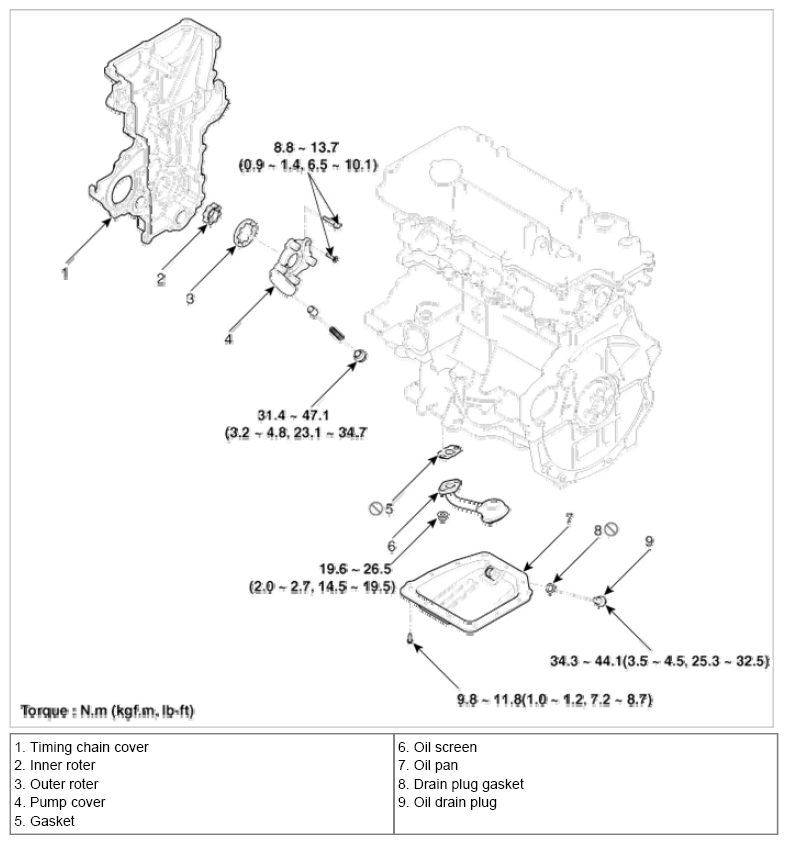

Fig 1: Lubrication System Replacement Components With Torque Specifications
G08327744Courtesy of KIA MOTORS AMERICA, INC.
