Components and Components Location: Components

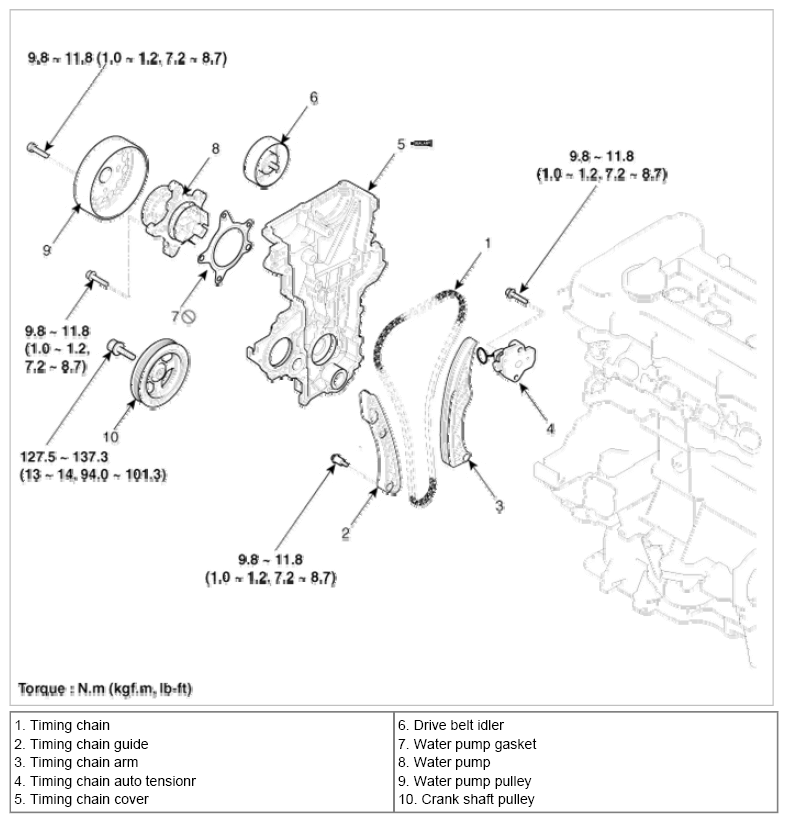

Fig 1: Timing Chain Replacement Components With Torque Specifications

G08330596

Courtesy of KIA MOTORS AMERICA, INC.
