Idle Stop & Go (ISG) System - 1.6L
>>
Components and Components Location
>>
Components Location
Components Location

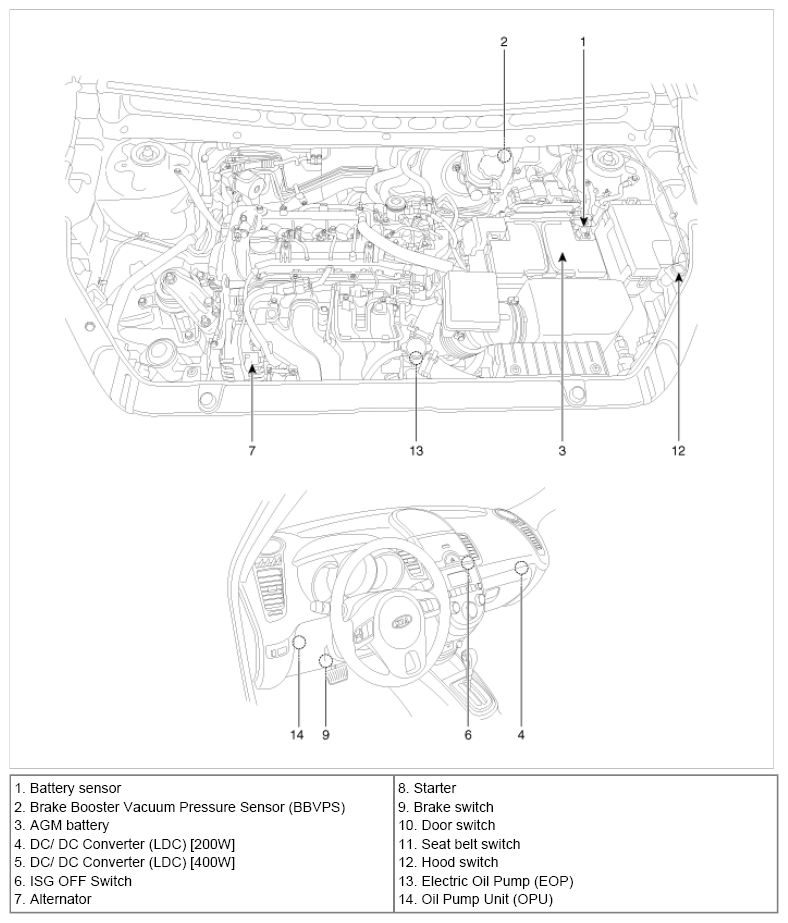

Fig 1: Idle Stop And Go System Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

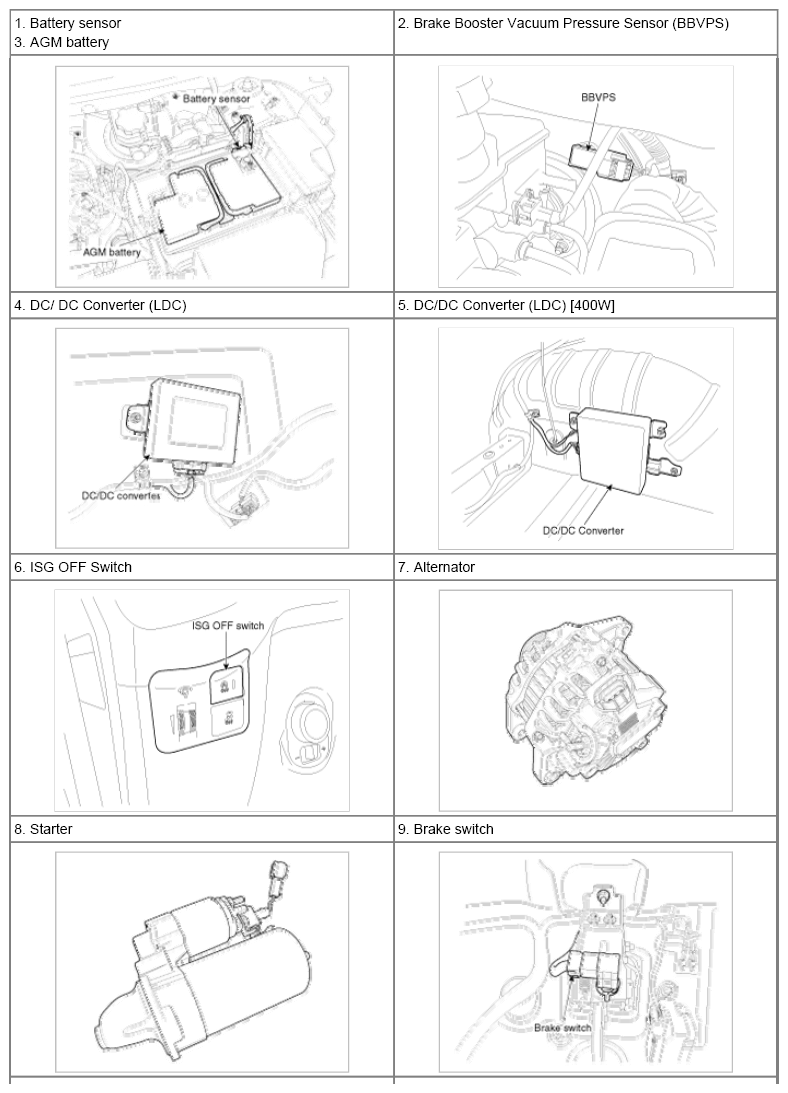

Fig 2: Idle Stop And Go System Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

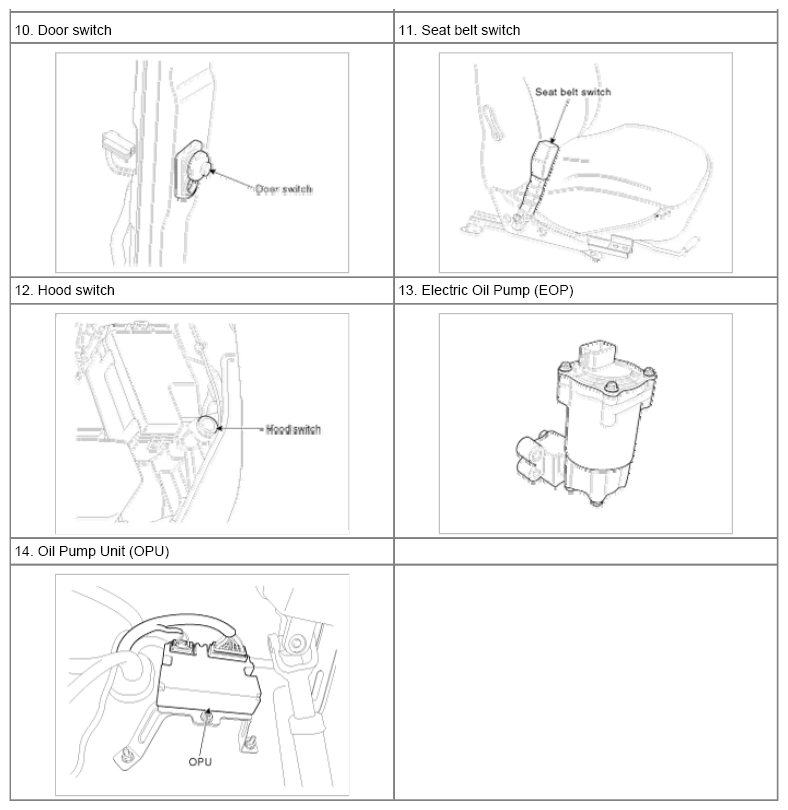

Fig 3: Idle Stop And Go System Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
