Home >> Kia >> 2012 >> Soul Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Idle Stop & Go (ISG) System - 1.6L >> Troubleshooting >> Current Data

Current Data

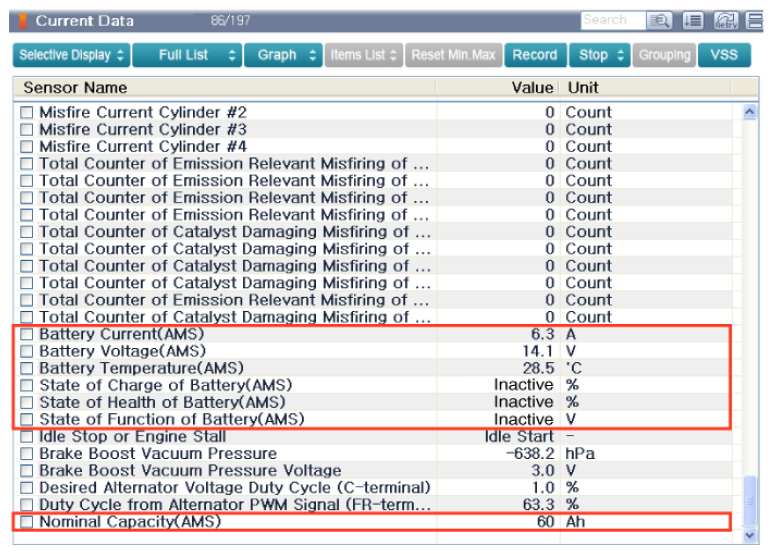

Fig 1: Display - Battery Status Current Data Screen (1 Of 2)
G08328038Courtesy of KIA MOTORS AMERICA, INC.

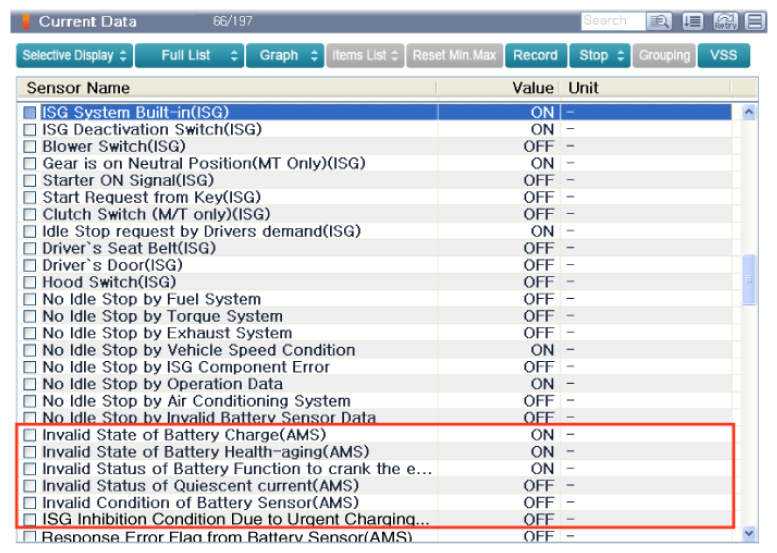

Fig 2: Display - Battery Status Current Data Screen (2 Of 2)
G08328039Courtesy of KIA MOTORS AMERICA, INC.
