Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver airbag module.
Refer to "AIRBAG MODULE ".
Remove the steering wheel remote control switch mounting screws (2 EA).

Disconnect the connector and remove the steering wheel remote control switch (A).

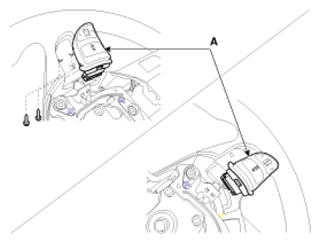

Fig 1: Identifying Steering Wheel Remote Control Switch

Courtesy of KIA MOTORS AMERICA, INC.
