Components And Components Location: Components

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

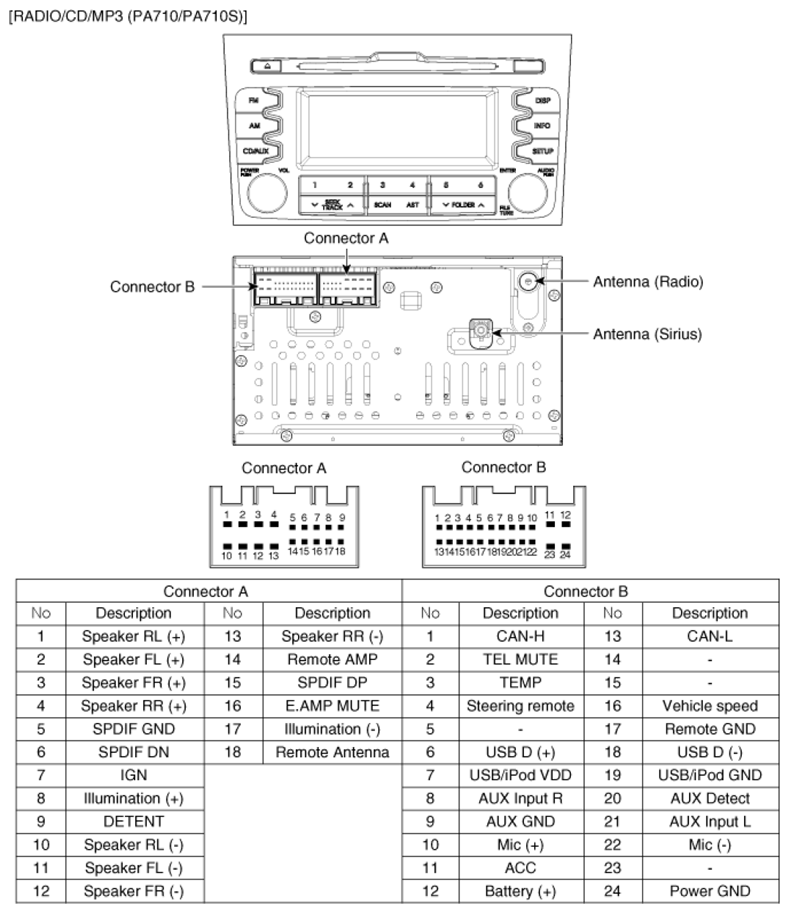

Fig 1: Identifying Audio Unit Components & Connector Terminal Identification - RADIO/CD/MP3 (PA710/PA710S)

Courtesy of KIA MOTORS AMERICA, INC.

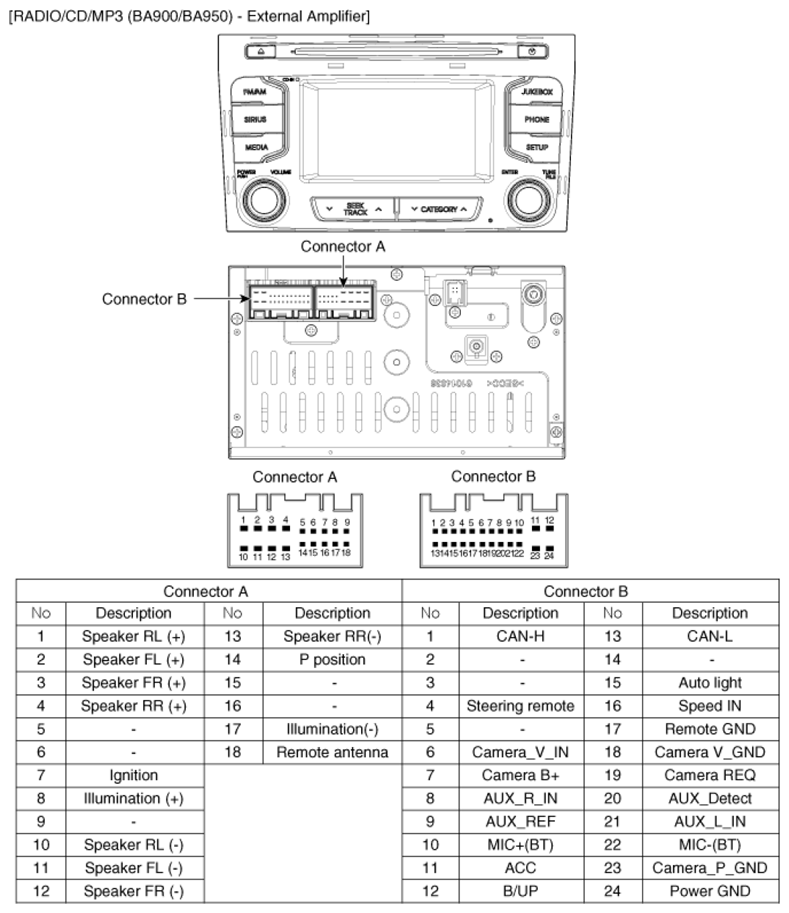

Fig 2: Identifying Audio Unit Components & Connector Terminal Identification - RADIO/MP3/CD (BA900/BA950) - External Amplifier

Courtesy of KIA MOTORS AMERICA, INC.

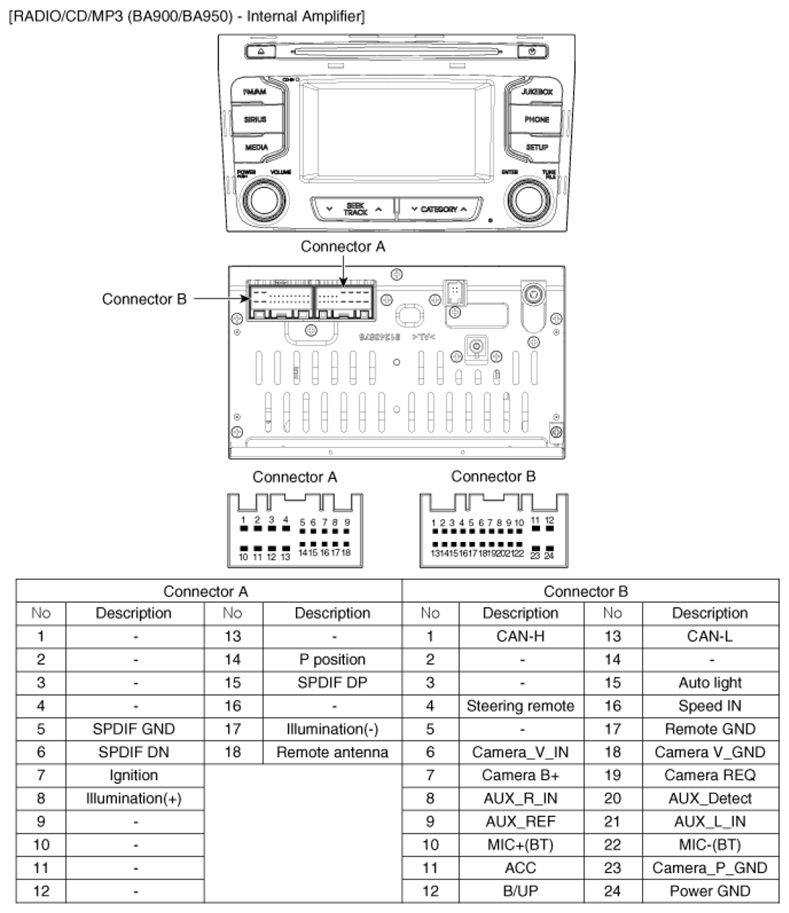

Fig 3: Identifying Audio Unit Components & Connector Terminal Identification - RADIO/MP3/CD (BA900/BA950) - Internal Amplifier

Courtesy of KIA MOTORS AMERICA, INC.

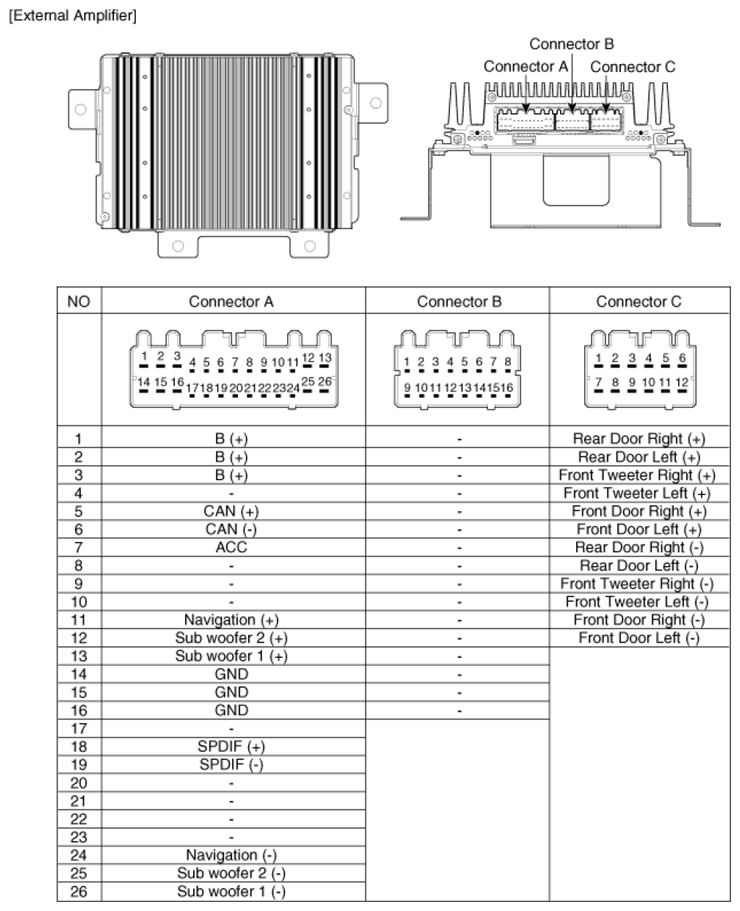

Fig 4: External Amplifier Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.

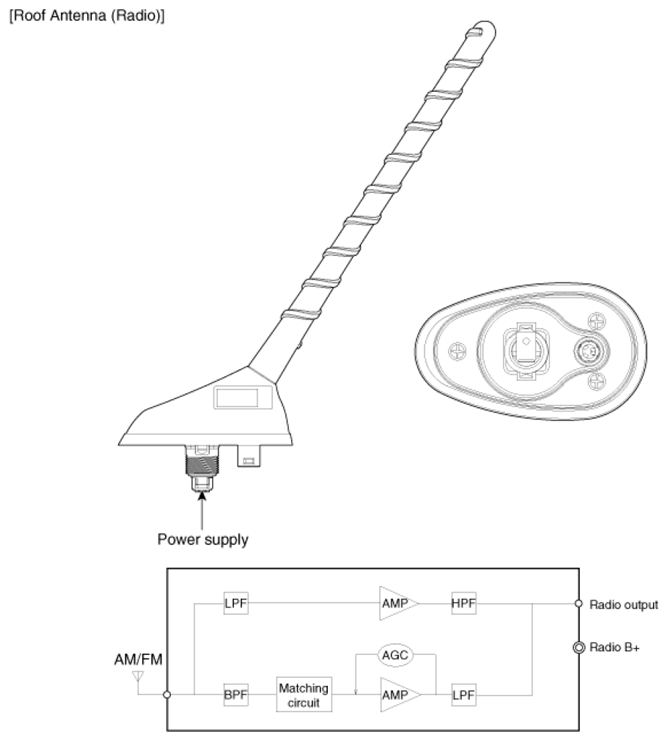

Fig 5: Identifying Roof Antenna & Circuit Diagram (Radio)

Courtesy of KIA MOTORS AMERICA, INC.

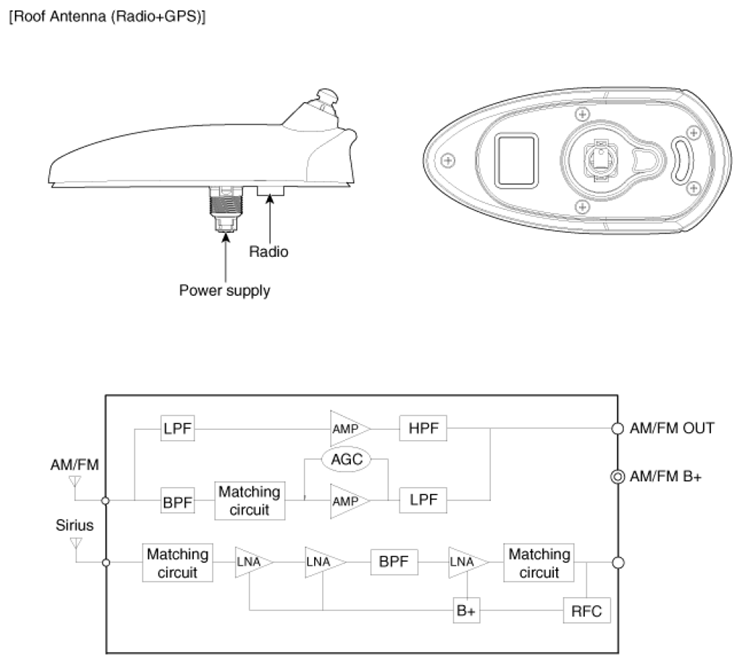

Fig 6: Identifying Roof Antenna & Circuit Diagram (Radio & GPS)

Courtesy of KIA MOTORS AMERICA, INC.
