Home >> Kia >> 2012 >> Soul Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 1.6L >> Oil Pump >> Components And Components Location >> Components

Components And Components Location: Components

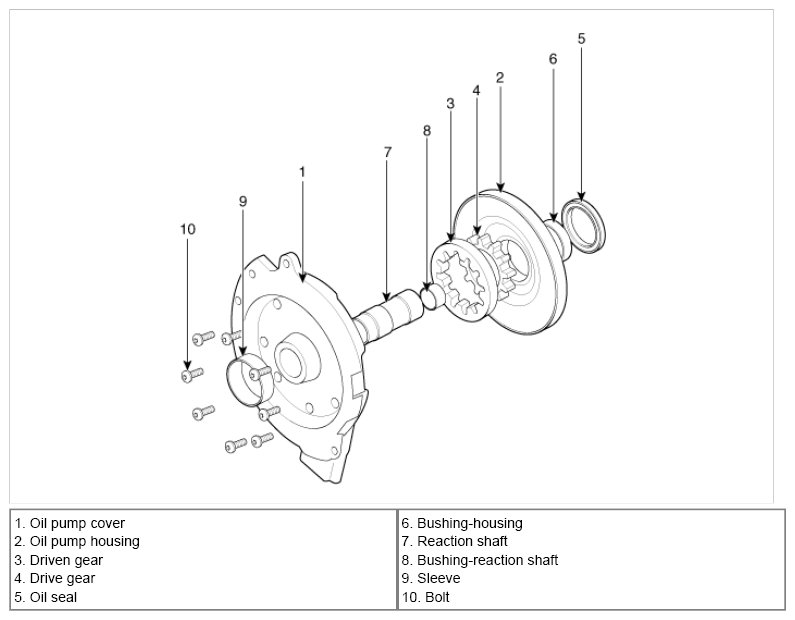

Fig 1: Identifying Oil Pump Components
G08328248Courtesy of KIA MOTORS AMERICA, INC.
