Signal Waveform

Fig 1: Display - Input/Output Speed Sensor At Low Speed Screen
G09751537Courtesy of KIA MOTORS AMERICA, INC.

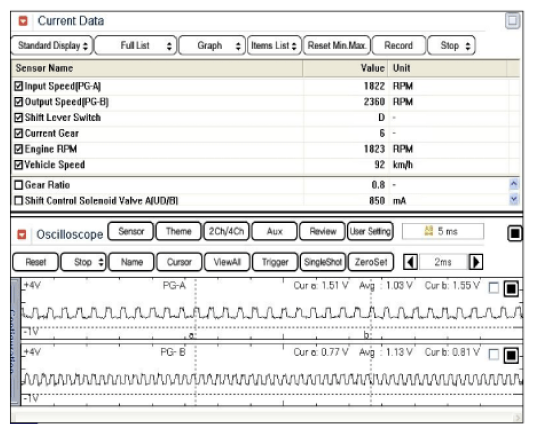

Fig 2: Display - Input/Output Speed Sensor At High Speed Screen
G09751538Courtesy of KIA MOTORS AMERICA, INC.
