Home >> Kia >> 2014 >> Forte EX >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - 2.0L >> Ignition Coil >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Measure the primary coil resistance between terminals (+) and (-)

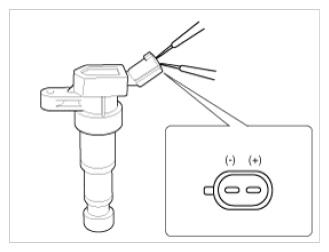

    Fig 1: Measuring Primary Coil Resistance Between Terminals (+) And (-)
    G09742790Courtesy of KIA MOTORS AMERICA, INC.

    Standard value  : 0.75Ω ± 15%
