Home >> Kia >> 2014 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System - 1.8L >> Ignition Coil >> Repair Procedures >> Inspection

Repair Procedures: Inspection

  1. Measure the primary coil resistance between terminals (+) and (-).

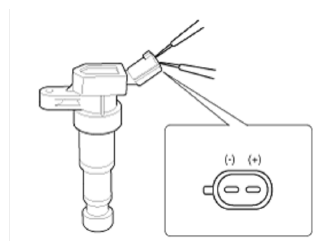

    Fig 1: Measuring Primary Coil Resistance Between Terminals
    G09745502Courtesy of KIA MOTORS AMERICA, INC.

    Standard value:  0.75Ω ± 15%
