Home >> Kia >> 2014 >> Forte5 SX, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> CVVT Oil Control Valve (OCV) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the valves by loosening the mounting bolt (B).

    [Bank 1/Intake]

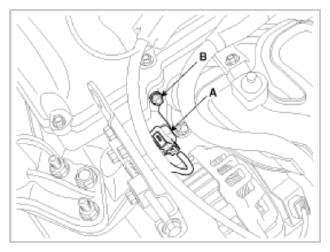

    Fig 1: CVVT Oil Control Valve Connector & Bolt (Bank 1/Intake)
    G09750253Courtesy of KIA MOTORS AMERICA, INC.

    [Bank 1/Exhaust]

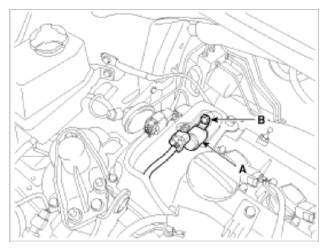

    Fig 2: CVVT Oil Control Valve Connector & Bolt (Bank 1/Exhaust)
    G09750254Courtesy of KIA MOTORS AMERICA, INC.
