Engine Control System - 1.6L
>>
Components And Components Location
>>
Components Location
Components Location

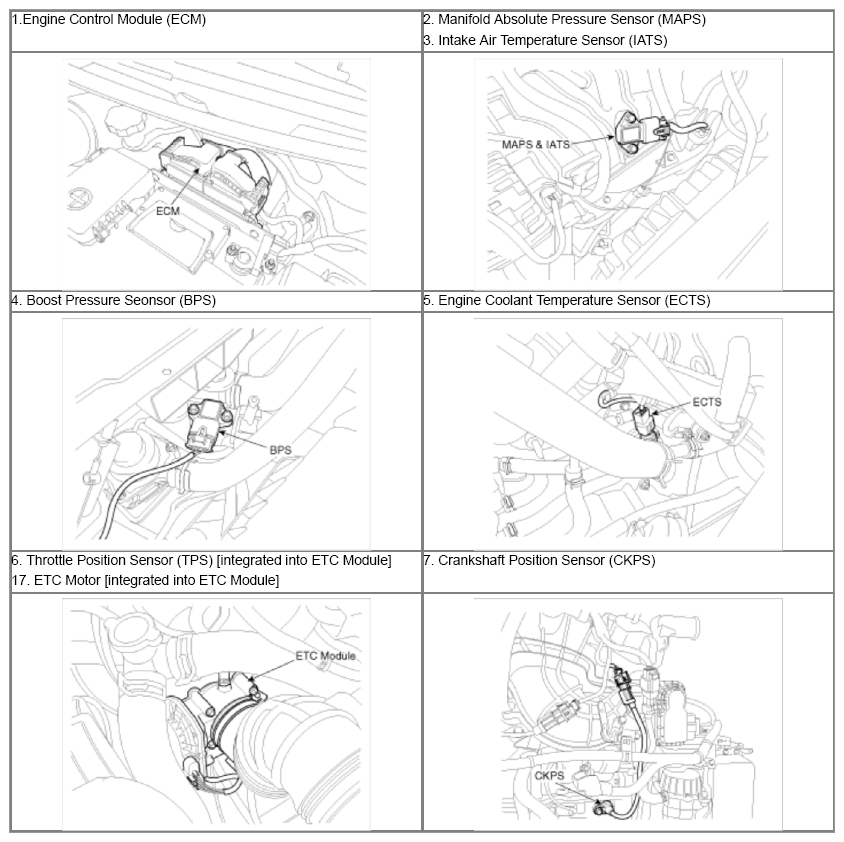

Fig 1: Engine Control/Fuel System Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

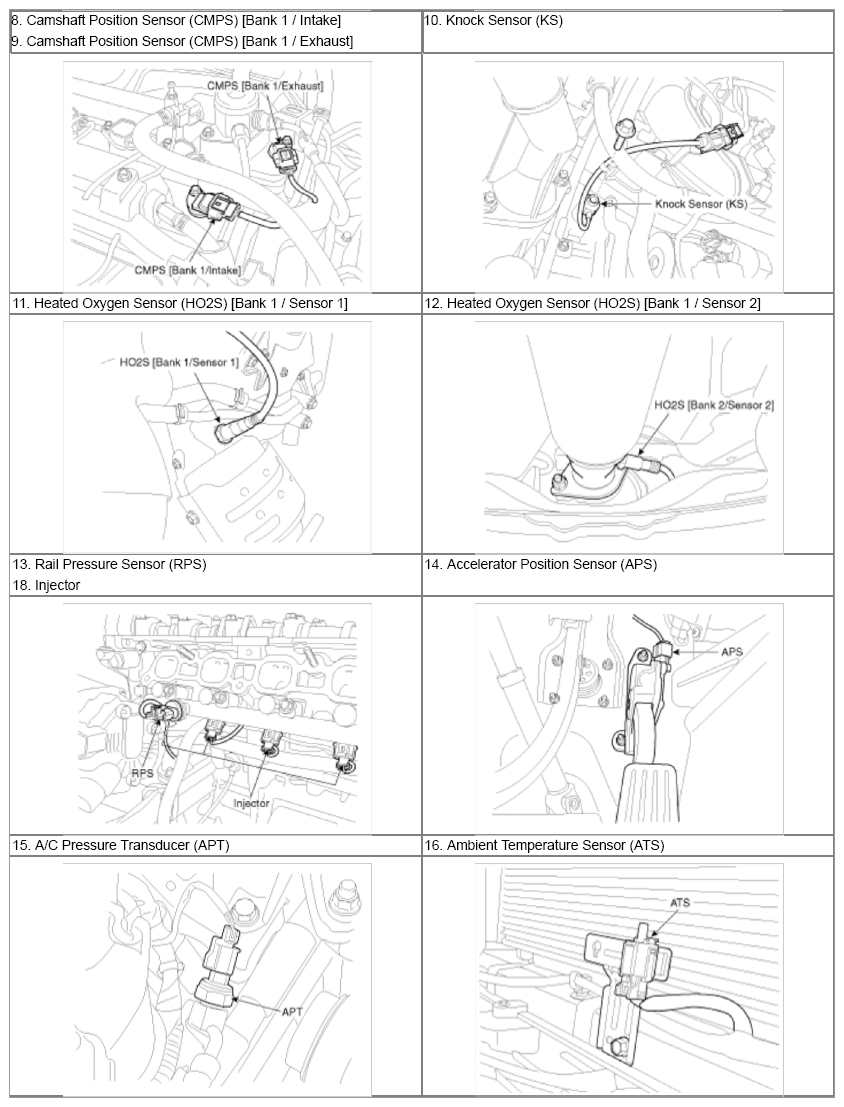

Fig 2: Engine Control/Fuel System Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

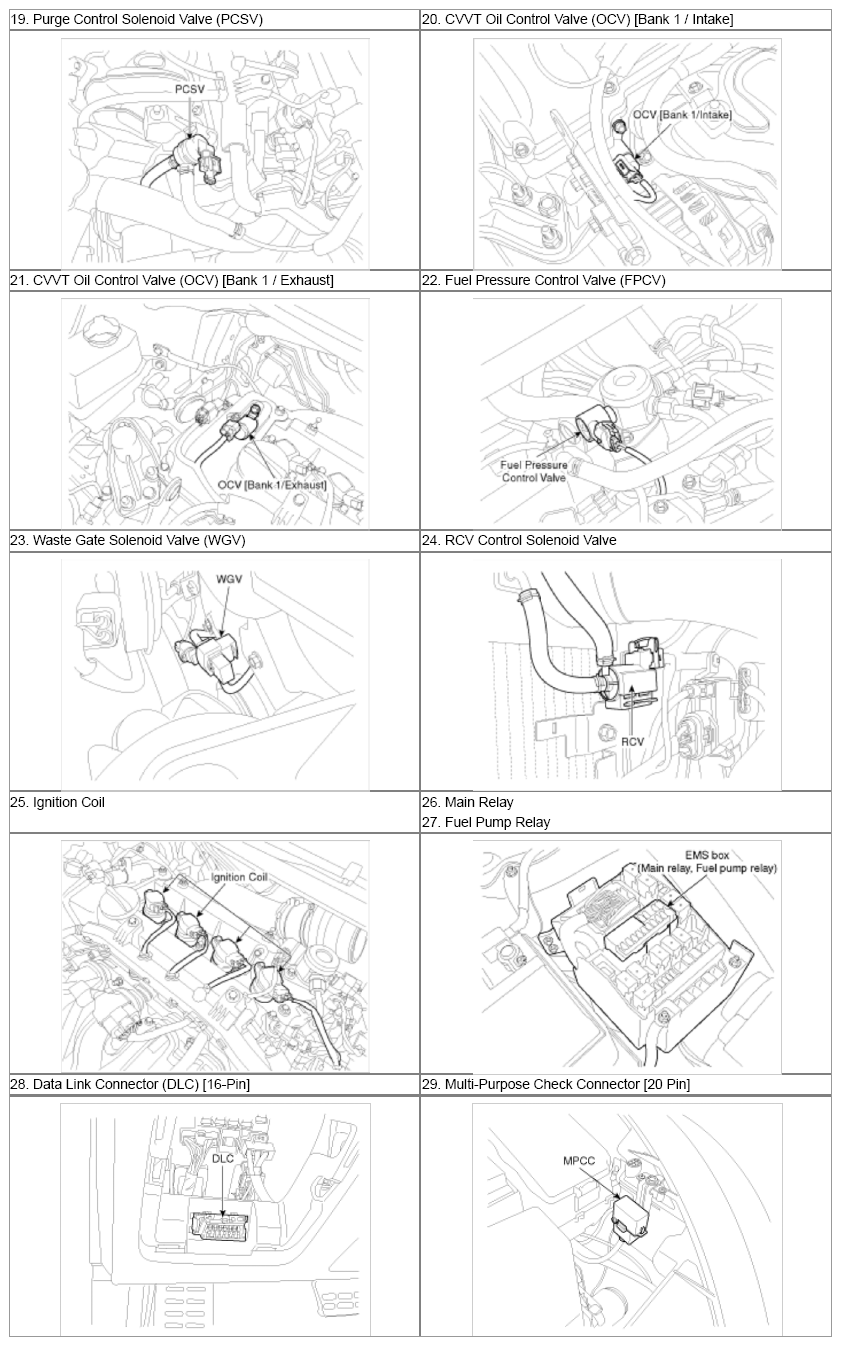

Fig 3: Engine Control/Fuel System Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

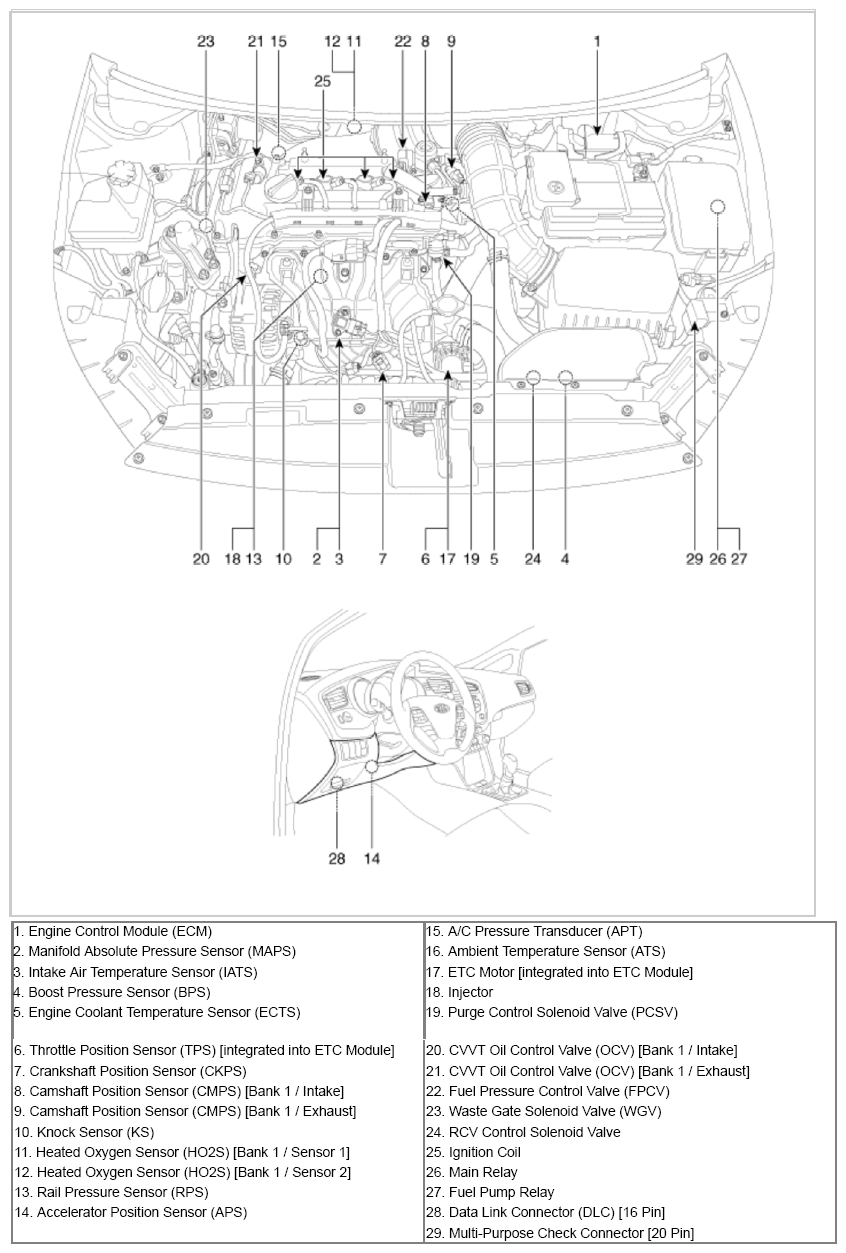

Fig 4: Engine Control/Fuel System Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
